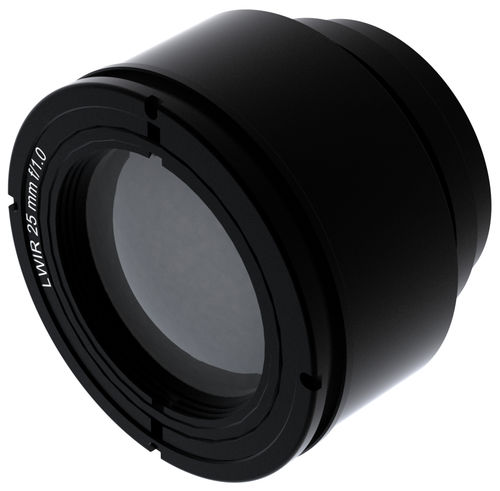

Fixed-focus camera objective 18061_100

infraredthermal imaginghigh-resolution

Umicore’s GASIR® infrared lenses have been developed for an easy fit with a wide range of camera cores. Our catalog lenses provide a cost-effective solution for high-resolution thermal imaging and sensing applications. This passively athermalized infrared lens fits the latest 12 μm VGA uncooled detectors or smaller. It is adapted to the latest FLIR Boson® interface. Its low distortion and extreme sharpness makes it ideally suited for use in thermal imaging applications. Optical Properties F-number f/1.0 Transmission (HEAR) >89% Focus range 0.5 m to infinity with 1.2 mm refocus Waveband 8 - 12 µm Mechanical properties Weight (HEAR) 71.3 g Interface thread M34x0.5 Back focal length* 6.0 mm Flange back distance* 17.55 mm value applicable with 0.63 mm Si window (not included) Environmental properties Operating temperature -40 °C to +80 °C Storage temperature -57 °C to +105 °C
