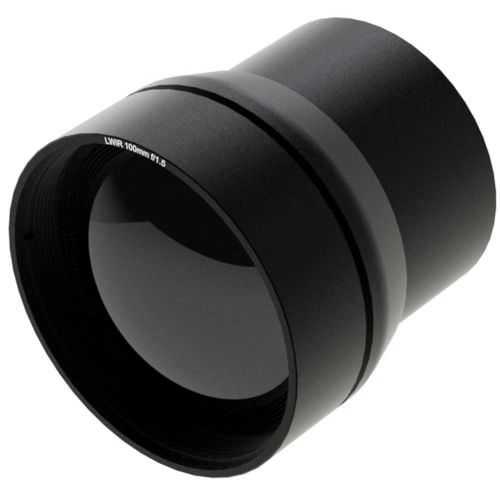

Fixed-focus camera objective 24040_100

infraredmachine visionhigh-resolution

Umicore’s GASIR® infrared lenses have been developed for an easy fit with a wide range of camera cores. Our catalog IR lenses provide a cost-effective solution for high-resolution thermal imaging and sensing applications. This passively athermalized Super-Tele infrared lens fits the latest 17 µm XGA and 25 µm VGA uncooled detectors and smaller. Its very compact design makes it ideal for use in situations where weight is an important factor. Optical Properties F-number f/1.5 Transmission (iDLC) > 87% Transmission (HEAR) > 94% Focus range 14 m to infinity with refocus of 0.75 mm Waveband 8 - 12 µm Mechanical properties Mechanical shock (iDLC) MIL-E-5400T Mechanical shock (HEAR) MIL-E-5400T Weight (iDLC) 284 g Weight (HEAR) 284 g Interface thread M34x0.5 Back focal length* 10.1 mm Flange back distance* 18.3 mm value applicable with 1 mm Ge window (not included) Environmental properties Sealing (iDLC) IP67 Sealing (HEAR) IP67 Vibration (iDLC) MIL-STD-810E Method 514.4 Proc I Cat 8 Vibration (HEAR) MIL-STD-810E Method 514.4 Proc I Cat 8 Operating temperature -40°C to +80°C Storage temperature -50°C to +107°C
