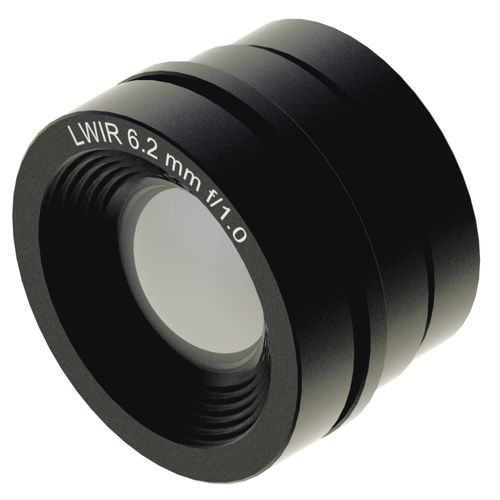

Fixed-focus camera objective 19049_100

infraredhigh-resolutioncompact design

Umicore’s GASIR® infrared lenses have been developed for an easy fit with a wide range of camera cores. Our catalog lenses provide a cost-effective solution for high-resolution thermal imaging and sensing applications. This athermalized lens offers superior performance from -40 ◦C to +80 ◦C. Its lightweight and compact design make it a prime choice for your application. This lens is compatible with 12 µm VGA detectors and smaller Optical Properties F-number/Aperture f/1.0 Transmission > 91% Focus range 0.28 m to infinity with 0.12 mm refocus Waveband 8 - 12 µm Mechanical Properties Weight 26.4 g Interface thread M25×0.5 Back focal length* 9.00 mm Flange back distance* 19.47 mm *: value applicable with 1 mm Ge window (not included) Environmental Properties Operating temperature -40 °C to +80 °C Storage temperature -57 °C to + 105 °C
