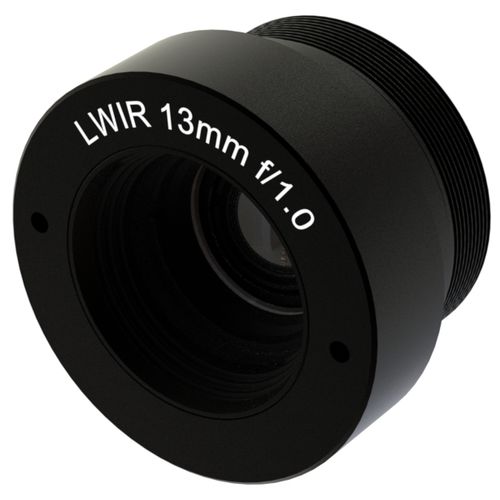

Fixed-focus camera objective 11106_110

infraredthermal imaginghigh-resolution

Umicore’s GASIR® infrared lenses have been developed for an easy fit with a wide range of camera cores. Our catalog IR lenses provide a cost-effective solution for high-resolution thermal imaging and sensing applications. This high-speed, passively athermalized infrared lens fits the latest 17 µm qVGA and 25 µm qqVGA uncooled detectors and smaller. Optical Properties F-number f/1.0 Transmission (HEAR) > 94% Transmission (DLC) > 87% Focus range 0.4 m to infinity with refocus of 0.39 mm Waveband 8 - 12 µm Mechanical properties Mechanical shock MIL-E-5400T Mechanical shock (HEAR) MIL-E-5400T Mechanical shock (DLC) MIL-E-5400T Weight (HEAR) 23 g Weight (DLC) 23 g Interface thread M25×0.5 Back focal length* 8.8 mm Flange back distance* 19.47 mm value applicable with 1 mm Ge window (not included) Environmental properties Sealing IP67 Sealing (HEAR) IP67 Sealing (DLC) IP67 Solar radiation MIL-STD-810G Method 505.5 Vibration MIL-STD-810E Method 514.4 Proc I Cat 8 Vibration (HEAR) MIL-STD-810E Method 514.4 Proc I Cat 8 Vibration (DLC) MIL-STD-810E Method 514.4 Proc I Cat 8 Operating temperature -40°C to +80°C Storage temperature -57°C to +105°C
