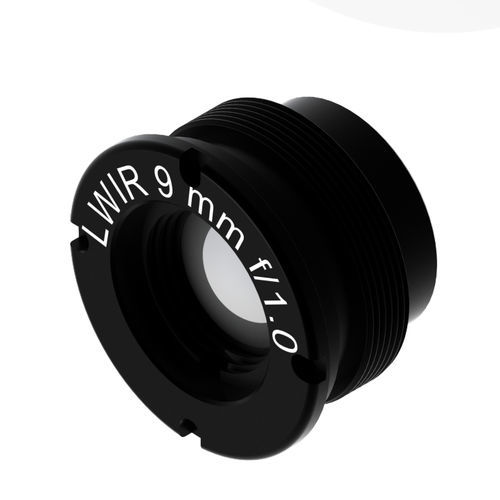

Umicore’s GASIR® infrared lenses have been developed for an easy fit with a wide range of camera cores. Our catalog lenses provide a cost-effective solution for high-resolution thermal imaging and sensing applications. This ultralight, compact, athermalized infrared lens offers superior performance and is suitable for use with 12 μm qVGA detectors or smaller. It is adapted to the latest FLIR Boson® interface. Its low distortion makes it ideally suited for use in thermal imaging applications.
Optical Properties
F-number/Aperture
f/1.0
Transmission
> 89%
Focus range
0.15 m to infinity with 0.50 mm refocus
Waveband
8 - 12 µm
Mechanical Properties
Weight
7.3 g
Interface thread
M18×0.5
Back focal length*
4.35 mm
Flange back distance*
11.38 mm
*: value applicable with 0.63 mm Si window (not included)
Environmental Properties
Operating temperature
-40 °C to +80 °C
Storage temperature
-57 °C to +105 °C
