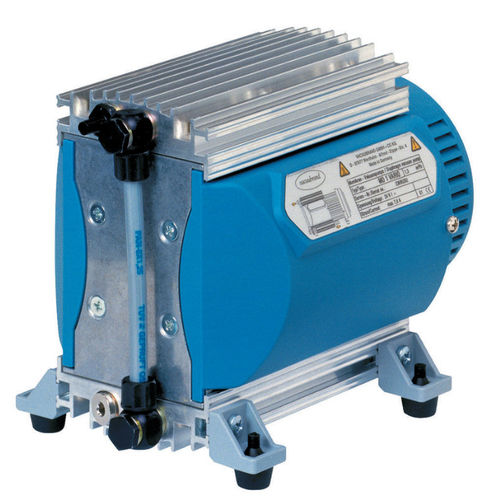

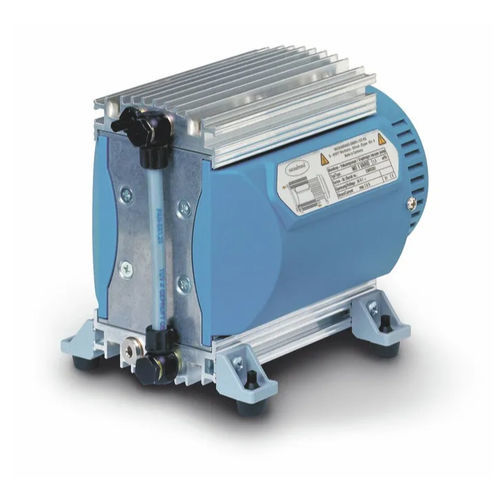

Diaphragm vacuum pump MD 1 VARIO-SP
oil-free24VDCthree-stage

Diaphragm vacuum pump - MD 1 VARIO-SP - VACUUBRAND - oil-free / 24VDC / three-stage
Diaphragm vacuum pump - MD 1 VARIO-SP - VACUUBRAND - oil-free / 24VDC / three-stage
Diaphragm vacuum pump - MD 1 VARIO-SP - VACUUBRAND - oil-free / 24VDC / three-stage - image - 2
Add to favorites
Compare this product
Go to the VACUUBRAND website for more information

Characteristics

Technology
diaphragm
Lubrication
oil-free
Supply voltage
24VDC
Number of stages
three-stage
Applications
for laboratory, for the chemical industry, OEM
Other characteristics
low-noise level, low energy consumption, variable-speed
Ultimate vacuum

1 mbar
(0.01 psi)

Flow rate

1.8 m³/h
(63.57 ft³/h)

Power

0.06 kW
(0.08 hp)

Operating temperature

Min.: -10 °C
(14 °F)

Max.: 60 °C
(140 °F)

Length

233 mm
(9 in)

Width

143 mm
(5.63 in)

Height

163 mm
(6.42 in)

Noise level

37 dB

Weight

4.1 kg
(9.04 lb)

Description

contamination-free pumping and evacuation high flow rate even near ultimate vacuum variable speed: Fast pump down at high motor speed, with reduced speeds to maintain vacuum very powerful and extremely compact; whisper quiet and ultra-low vibration, especially at low speed customized versions available VARIO®-SP diaphragm pump in action The three-stage MD 1 VARIO-SP diaphragm pump, with its variable speed drive system, attains significantly higher pumping speed and a better ultimate vacuum than the corresponding fixed speed pump. The brushless 24V DC motor (maintenance-free) enables easy integration of the pump into other equipment, and operation independent of line voltage. The pump is extraordinarily silent and vibration-free, with an extended lifetime for its diaphragms.

Catalogs

No catalogs are available for this product.

See all of VACUUBRAND‘s catalogs
Go to the VACUUBRAND website for more information
