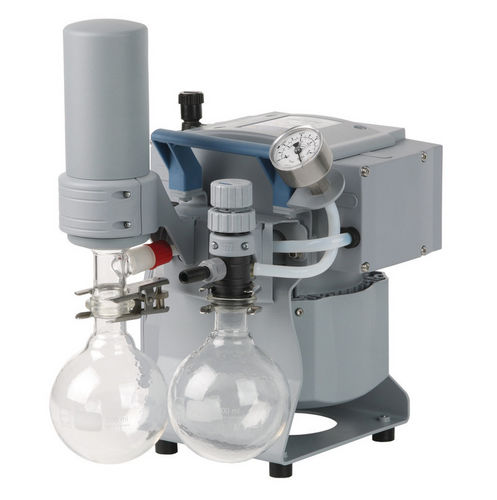

Diaphragm vacuum pump PC 101 NT
oil-free230VACtwo-stage

Diaphragm vacuum pump - PC 101 NT - VACUUBRAND - oil-free / 230VAC / two-stage
Diaphragm vacuum pump - PC 101 NT - VACUUBRAND - oil-free / 230VAC / two-stage
Add to favorites
Compare this product
Go to the VACUUBRAND website for more information

Characteristics

Technology
diaphragm
Lubrication
oil-free
Supply voltage
230VAC
Number of stages
two-stage
Applications
for water, for laboratory, for distillation, for mass spectrometry, for liquid transfer, for medical applications, for the chemical industry, for gas, for exhaust gas, chemical process, for pharmaceutical applications, for the plastics industry, air sampling, high-temperature, for fuel cells, for recycling
Other characteristics
compact, low-noise level, chemical-resistant
Ultimate vacuum

7 mbar, 12 mbar
(0.1 psi, 0.17 psi)

Flow rate

2 m³/h, 2.3 m³/h
(70.63 ft³/h, 81.22 ft³/h)

Power

0.18 kW
(0.24 hp)

Operating temperature

Max.: 60 °C
(140 °F)

Min.: -10 °C
(14 °F)

Length

326 mm
(13 in)

Width

243 mm
(9.57 in)

Height

402 mm
(15.83 in)

Noise level

45 dB

Weight

14.5 kg
(31.97 lb)

Description

outstanding chemical resistance and superior vapor tolerance high performance even at low vacuum levels optimized vacuum even with gas ballast for condensate purge excellent environmental friendliness due to efficient solvent recovery manual vacuum control, analog vacuum display Chemistry pumping unit in action This chemistry pumping unit has a wide range of applications like evacuation, evaporation and pumping of gases and vapors in chemical, biological and pharmaceutical laboratories. Typical applications are rotary evaporators and vacuum drying ovens. The manual flow control valve regulates the effective pumping speed at the vacuum connection, the vacuum manometer offers an analog vacuum display. The waste vapor condenser at the outlet (EK) is highly efficient and compact. The condenser enables near-100-percent solvent recovery, efficient recycling and active protection of the environment.
