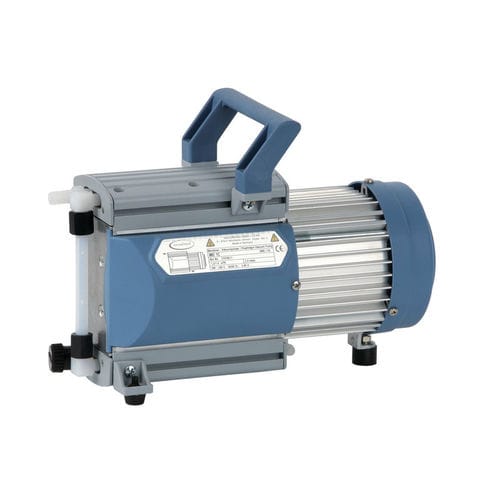

Diaphragm vacuum pump MD 1C
oil-free230VACthree-stage

Diaphragm vacuum pump - MD 1C - VACUUBRAND - oil-free / 230VAC / three-stage
Diaphragm vacuum pump - MD 1C - VACUUBRAND - oil-free / 230VAC / three-stage
Diaphragm vacuum pump - MD 1C - VACUUBRAND - oil-free / 230VAC / three-stage - image - 2
Add to favorites
Compare this product
Go to the VACUUBRAND website for more information

Characteristics

Technology
diaphragm
Lubrication
oil-free
Supply voltage
230VAC
Number of stages
three-stage
Applications
for gas, for laboratory, for medical applications, for mass spectrometry, for recycling, for the chemical industry, air sampling, for rotary table vacuum filters, for water, for exhaust gas, chemical process, for fuel cells, for pharmaceutical applications, for the plastics industry, for distillation, OEM, high-temperature, for liquids
Other characteristics
small, low-noise level, chemical-resistant, portable
Ultimate vacuum

2 mbar, 4 mbar
(0.03 psi, 0.06 psi)

Flow rate

1.3 m³/h, 1.5 m³/h
(45.91 ft³/h, 52.97 ft³/h)

Power

0.08 kW
(0.11 hp)

Operating temperature

Max.: 60 °C
(140 °F)

Min.: -10 °C
(14 °F)

Length

316 mm
(12 in)

Width

143 mm
(5.63 in)

Height

175 mm
(6.89 in)

Noise level

41 dB

Weight

7.9 kg
(17.42 lb)

Description

outstanding chemical resistance and superior vapor tolerance exceptionally high performance even at low vacuum excellent ultimate vacuum even with gas ballast whisper quiet and ultra low vibration proven long diaphragm life, maintenance-free drive system Chemistry diaphragm pump in action Three-stage chemistry-design diaphragm pumps are an excellent solution for continuous, oil-free pumping of corrosive gases and vapors and meet high requirements regarding ultimate vacuum. The three-stage construction provides the advantageous combination of high pumping speed and deep ultimate vacuum in a pump with a very small footprint. All parts in contact with pumped media are made of chemically resistant fluoroplastics. Well-proven PTFE sandwich diaphragms increase reliability and extend operating life. The MD 1C with gas ballast valve is optimally prepared for pumping easily condensable vapors (high boiling solvents).
