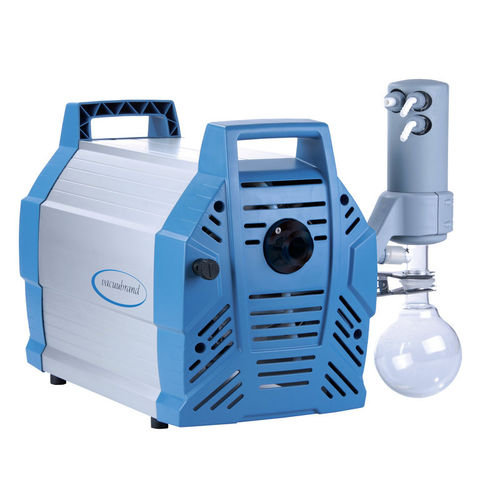

Diaphragm vacuum pump ME 16C NT +EK
oil-free220VAC230VAC

Diaphragm vacuum pump - ME 16C NT +EK - VACUUBRAND - oil-free / 220VAC / 230VAC
Diaphragm vacuum pump - ME 16C NT +EK - VACUUBRAND - oil-free / 220VAC / 230VAC
Add to favorites
Compare this product
Go to the VACUUBRAND website for more information

Characteristics

Technology
diaphragm
Lubrication
oil-free
Supply voltage
230VAC, 220VAC
Number of stages
single-stage
Applications
for medical applications, for laboratory, for the chemical industry, for liquid transfer, air sampling, for water, for gas, for exhaust gas, for mass spectrometry, chemical process, for pharmaceutical applications, for the plastics industry, for fuel cells, for recycling, for distillation
Other characteristics
compact, low-noise level, chemical-resistant, high-flow
Ultimate vacuum

70 mbar
(1.02 psi)

Flow rate

16.3 m³/h
(575.63 ft³/h)

Power

0.53 kW
(0.72 hp)

Operating temperature

Max.: 60 °C
(140 °F)

Min.: -10 °C
(14 °F)

Length

528 mm
(21 in)

Width

387 mm
(15.24 in)

Height

395 mm
(15.55 in)

Noise level

54 dB

Weight

28.3 kg
(62.39 lb)

Description

outstanding chemical resistance and superior vapor tolerance very high pumping speed even at low vacuum levels compact design whisper quiet and very low vibration excellent environmental friendliness due to efficient solvent recovery Chemistry vacuum system in action Chemistry diaphragm pumps of the NT design are an excellent solution for continuous, oil-free pumping of corrosive gases and vapors. The one-stage construction provides the advantageous combination of high pumping speed and low ultimate vacuum down to 70 mbar. All major parts in contact with pumped media are made of chemically resistant fluoroplastics. Well-proven PTFE sandwich diaphragms for increased reliability and extended operating life. The eight cylinders pump ME 16C NT provides a particularly high performance together with a compact design. Upgraded with an outlet exhaust vapor condenser (EK) the ME 16C NT +EK provides an environmental friendly system with efficient solvent recovery. Eight-cylinder NT pumps feature quiet operation, smooth and easy to clean surfaces.
