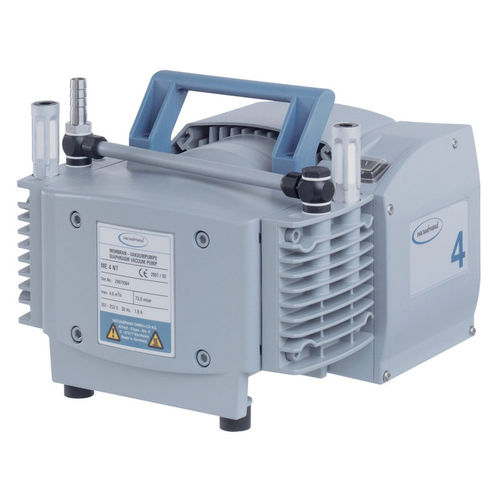

Diaphragm vacuum pump ME 4 NT
oil-free230VACsingle-stage

Diaphragm vacuum pump - ME 4 NT - VACUUBRAND - oil-free / 230VAC / single-stage
Diaphragm vacuum pump - ME 4 NT - VACUUBRAND - oil-free / 230VAC / single-stage
Diaphragm vacuum pump - ME 4 NT - VACUUBRAND - oil-free / 230VAC / single-stage - image - 2
Add to favorites
Compare this product
Go to the VACUUBRAND website for more information

Characteristics

Technology
diaphragm
Lubrication
oil-free
Supply voltage
230VAC
Number of stages
single-stage
Applications
for medical applications, for laboratory, for the chemical industry, for gas, chemical process, for pharmaceutical applications, for the plastics industry
Other characteristics
low-noise level, portable
Ultimate vacuum

70 mbar
(1.02 psi)

Flow rate

4 m³/h, 4.4 m³/h
(141.26 ft³/h, 155.38 ft³/h)

Power

0.2 kW
(0.27 hp)

Operating temperature

Max.: 60 °C
(140 °F)

Min.: -10 °C
(14 °F)

Length

243 mm
(10 in)

Width

239 mm
(9.41 in)

Height

198 mm
(7.8 in)

Noise level

45 dB

Weight

11 kg
(24.25 lb)

Description

contamination-free pumping and evacuation high flow rate even near ultimate vacuum whisper quiet ME 4 NT with low vibration and higher pumping speed exceptionally long diaphragm life and maintenance-free drive system for low lifetime costs Diaphragm pump in action Diaphragm pumps are an excellent solution for continuous, oil-free evacuation and pumping of gases. All parts in contact with pumped media are made of aluminum and selected plastics, allowing a wide range of applications for non-corrosive gases. The one-stage construction provides the advantageous combination of high pumping speed and an ultimate vacuum down to 70 mbar. The highly flexible fabric-reinforced double diaphragm made of FKM is ideal for extended operating life. The NT-series features further improved performance data.
