Diaphragm vacuum pump ME 8C NT
oil-freesingle-stagefor water

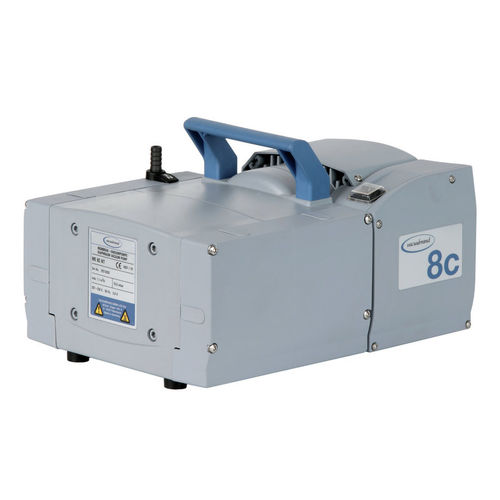

Diaphragm vacuum pump - ME 8C NT - VACUUBRAND - oil-free / single-stage / for water
Diaphragm vacuum pump - ME 8C NT - VACUUBRAND - oil-free / single-stage / for water
Add to favorites
Compare this product
Go to the VACUUBRAND website for more information

Characteristics

Technology
diaphragm
Lubrication
oil-free
Number of stages
single-stage
Applications
for water, for laboratory, for medical applications, for the chemical industry, for exhaust gas, chemical process, for pharmaceutical applications, for recycling, for the plastics industry, for fuel cells, for liquid transfer, for mass spectrometry, for distillation, air sampling
Other characteristics
compact, low-noise level, chemical-resistant
Ultimate vacuum

70 mbar
(1.02 psi)

Flow rate

7.1 m³/h, 7.8 m³/h
(250.73 ft³/h, 275.45 ft³/h)

Power

0.25 kW
(0.34 hp)

Operating temperature

Min.: -10 °C
(14 °F)

Max.: 60 °C
(140 °F)

Length

325 mm
(13 in)

Width

243 mm
(9.57 in)

Height

198 mm
(7.8 in)

Noise level

45 dB

Weight

14.3 kg
(31.53 lb)

Description

outstanding chemical resistance and superior vapor tolerance exceptionally high performance even at low vacuum compact design whisper quiet and very low vibration long diaphragm life, maintenance-free drive system Chemistry diaphragm pump in action Chemistry-design diaphragm pumps are an excellent solution for continuous, oil-free pumping of corrosive gases and vapors. The one-stage construction provides the advantageous combination of high pumping speed and low ultimate vacuum down to 70 mbar. All major parts in contact with pumped media are made of chemically resistant fluoroplastics. Well-proven PTFE sandwich diaphragms for increased reliability and extended operating life. These large pumps have an exceptionally high pumping speed. The NT-series features further improved performance data and superior vapor tolerance.
