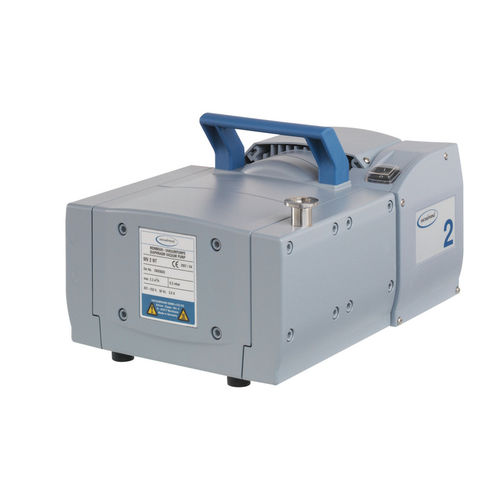

Diaphragm vacuum pump MV 2 NToil-free230VACfour-stage
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Lubrication
- oil-free
- Supply voltage
- 230VAC
- Number of stages
- four-stage
- Applications
- for laboratories, for gas
- Other characteristics
- stainless steel
- Ultimate vacuum
0.5 mbar
(0.01 psi)- Flow rate
2.2 m³/h, 2.4 m³/h
(77.69 ft³/h, 84.76 ft³/h)- Power
0.25 kW
(0.34 hp)- Operating temperature
Max.: 60 °C
(140 °F)Min.: -10 °C
(14 °F)- Length
325 mm
(13 in)- Width
239 mm
(9.41 in)- Height
198 mm
(7.8 in)- Noise level
50 dB
- Weight
16.4 kg
(36.16 lb)
Description
Four-stage diaphragm pumps are an excellent solution for continuous, oil-free pumping of gases when the need is to reach fractional millibar ultimate vacuums. All parts in contact with pumped vapors or gases are made of aluminum, stainless steel and carefully selected plastics suitable for a wide range of non-corrosive applications. The new NT-series pumps provide whisper-quiet and ultra-low-vibration operation, high leak-tightness and improved vacuum. The highly flexible, fabric-reinforced double diaphragm made of FKM offers extended operating life.
Performance features
contamination-free pumping and evacuation
high flow rate even near ultimate vacuum
outstanding ultimate vacuum
whisper quiet and ultra-low vibration
exceptionally long diaphragm life and maintenance-free drive system for low lifetime costs
Catalogs
No catalogs are available for this product.
See all of VACUUBRAND‘s catalogs
