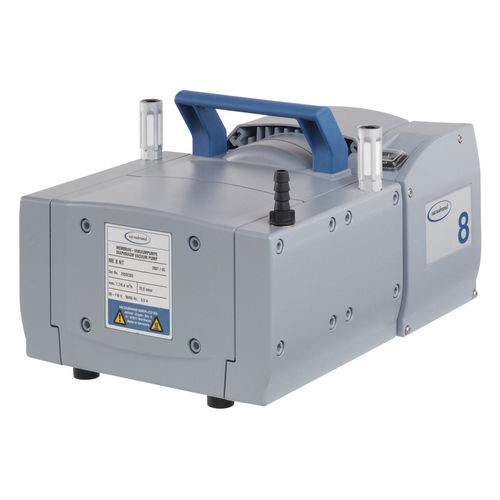

Diaphragm vacuum pump ME 8 NToil-free230VACsingle-stage
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Lubrication
- oil-free
- Supply voltage
- 230VAC
- Number of stages
- single-stage
- Applications
- for medical applications, for laboratory, for the chemical industry, for gas, chemical process, for pharmaceutical applications, for the plastics industry
- Other characteristics
- low-noise level, portable
- Ultimate vacuum
70 mbar
(1.02 psi)- Flow rate
7.3 m³/h
(257.8 ft³/h)- Power
0.3 kW
(0.41 hp)- Operating temperature
Min.: -10 °C
(14 °F)Max.: 60 °C
(140 °F)- Length
325 mm
(13 in)- Width
239 mm
(9.41 in)- Height
195 mm
(7.68 in)- Noise level
45 dB
- Weight
16.4 kg
(36.16 lb)
Description
contamination-free pumping and evacuation
very high flow rate even near ultimate vacuum
quiet operation
very low vibration
exceptionally long diaphragm life and maintenance-free drive system for low lifetime costs
Diaphragm pump in action
Diaphragm pumps are an excellent solution for continuous, oil-free evacuation and pumping of gases. All parts in contact with pumped media are made of aluminum and selected plastics, and allow a wide range of applications for non-corrosive gases. The highly flexible, fabric-reinforced double diaphragm made of FKM is ideal for extended operating life. These pumps with four heads provide very high pumping speed. The new NT-series features improved performance data.
Catalogs
No catalogs are available for this product.
See all of VACUUBRAND‘s catalogsOther VACUUBRAND products
Diaphragm pumps
