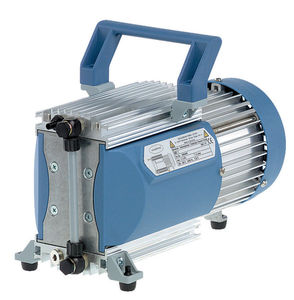

Diaphragm vacuum pump ME 2C NToil-free230VACsingle-stage
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Lubrication
- oil-free
- Supply voltage
- 230VAC
- Number of stages
- single-stage
- Applications
- for laboratory, for the chemical industry, for gas, for exhaust gas, for water, for recycling, chemical process, for pharmaceutical applications, for the plastics industry, high-temperature, air sampling, for liquid transfer, for fuel cells, for distillation, for mass spectrometry
- Other characteristics
- low-noise level, chemical-resistant, ATEX
- Ultimate vacuum
70 mbar
(1.02 psi)- Flow rate
2.1 m³/h, 2.4 m³/h
(74.16 ft³/h, 84.76 ft³/h)- Power
0.18 kW
(0.24 hp)- Operating temperature
Min.: -10 °C
(14 °F)Max.: 60 °C
(140 °F)- Length
243 mm
(10 in)- Width
211 mm
(8.31 in)- Height
198 mm
(7.8 in)- Noise level
45 dB
- Weight
10.2 kg
(22.49 lb)
Description
whisper quiet and very low vibration
powerful, even for parallel operation of several applications
high performance even at low vacuum levels
outstanding chemical resistance
long diaphragm life, maintenance-free drive system
whisper quiet and very low vibration
powerful, even for parallel operation of several applications
high performance even at low vacuum levels
outstanding chemical resistance
long diaphragm life, maintenance-free drive system
