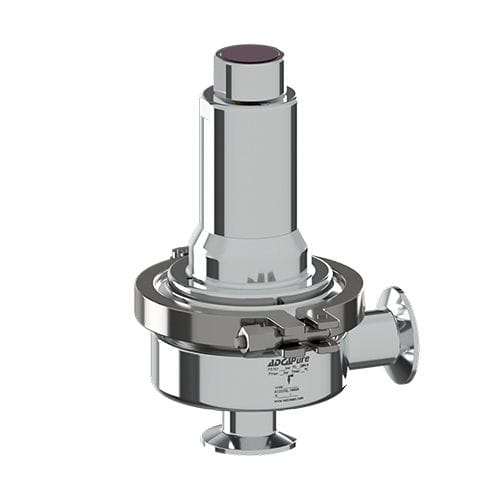

Diaphragm valve PS161

hydraulicadjustmentpressure sustaining

The ADCAPure PS161 is a series of angle design direct acting diaphragm sensing pressure sustaining valves. These regulators, available with spring or dome-loading, are designed for use with clean steam, compressed air, water and other gases or liquids compatible with the construction materials and valve design. MAIN FEATURES Spring or dome-loading. Non-rising adjustment knob. Compact design with clamped body. Available with low pressure diaphragm. FDA / USP Class VI compliant seals. Completely machined from bar stock material, no castings or forgings are used. Internal wetted parts: ≤ 0,51 µm Ra – SF1. External: ≤ 0,76 µm Ra – SF3. Other surface conditions see TIS.GIA – General information ADCAPure. Ultrasonic cleaning. Leakage line connection. Dome-loading. Top cap (adjustment screw with cover). Gauge connection on body. Different soft sealings for liquids and gases. Degreased for oxygen application. Clean steam, compressed air, water and other gases and liquids compatible with the construction. ASME BPE, DIN and ISO clamp ferrules or tube weld (ETO) ends. Others on request. Assembling and packaging in a clean room certified according to ISO 14644-1. The product is end capped and sealed with recyclable thermo-shrinkable plastic film, to avoid contamination. Horizontal installation. Horizontal inlet and vertical outlet. See IMI – Installation and maintenance instructions.
