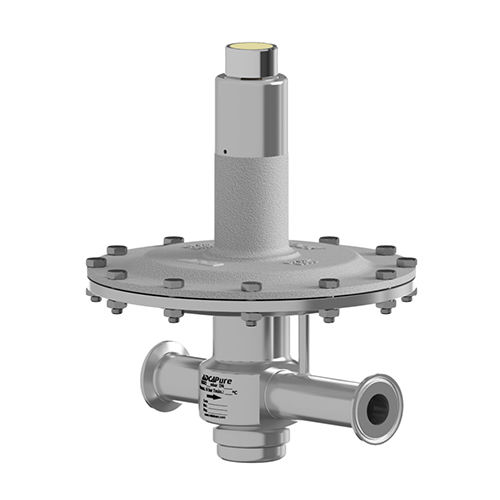

Diaphragm valve BKR2

hydraulicfor controlfor gas

Tank blanketing valves are commonly used in tank storage systems to prevent and protect against explosions (avoiding flammable liquids being vented from the vessel), to control product contamination against external air that may fill the vapour space, to reduce evaporation losses (consequently, production losses), to reduce internal corrosion (caused by air and moisture) and to prevent vacuum condition. The blanketing process consists in covering the stored medium, usually a liquid, with a gas (normally N2). Compact design Non-rising adjustment knob. FDA / USP Class VI compliant seals. Cover: internal machined and external as casted. Other surface conditions see TIS.GIA – General information ADCAPure. Ultrasonic cleaning. Leakage line connection. Dome-loading. Top cap (adjustment screw with cover). Gauge connection on body. External sensing line connection Air, nitrogen, argon and other gases compatible with the construction. Assembling and packaging in a clean room certified according to ISO 14644-1. The product is end capped and sealed with recyclable thermo-shrinkable plastic film, to avoid contamination.
