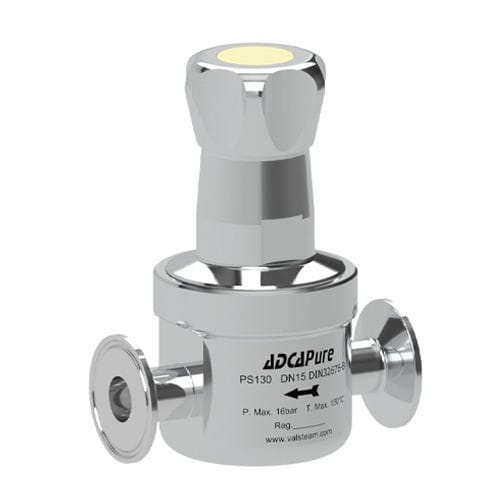

Diaphragm valve PS130

pneumaticadjustmentpressure sustaining

The ADCAPure PS130 is a series of direct acting, diaphragm sensing pressure sustaining valves. These regulators, available with spring or dome-loading, are designed for use with clean air, nitrogen, carbon dioxide, oxygen, argon and other gases or liquids compatible with the construction materials and valve design. Specifically designed for the high purity gas systems found in the pharmaceutical, cosmetic, fine chemical and food & beverage processes. Compact design. Non-rising adjustment knob. FDA / USP Class VI compliant seals. Completely machined from 316L stainless steel bar stock, no castings or forgings are used. Internal wetted parts: ≤ 0,51 µm Ra – SF1. External: ≤ 0,76 µm Ra – SF3. Other surface conditions see TIS.GIA – General information ADCAPure. Ultrasonic cleaning. Leakage line connection. Panel mounting. Dome-loading. Top cap (adjustment screw with cover). Gauge connection on body. Wall mounting. Different soft sealings for liquids and gases. Clean air, nitrogen, carbon dioxide, oxygen, argon and other gases or liquids compatible with the construction. Assembling and packaging in a clean room SEP LIMITING CONDITIONS * certified according to ISO 14644-1. The product is end capped and sealed with recyclable thermo-shrinkable plastic film, to avoid contamination. Degreased for oxygen application. Horizontal installation is recommended. See IMI – Installation and maintenance instructions.
