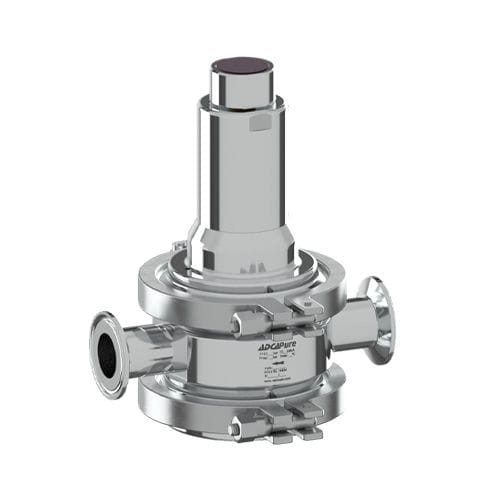

Reducing valve P163

diaphragmpneumaticadjustment

The ADCAPure P163 is a series of inline direct acting, diaphragm sensing pressure reducing valves. These regulators, available with spring or dome-loading, are designed for use with clean steam, compressed air, water and other gases or liquids compatible with the construction materials and valve design. Spring or dome-loading. Non-rising adjustment knob. Compact inline design with clamped body. FDA / USP Class VI compliant seals. Completely machined from bar stock material, no castings or forgings are used. Internal wetted parts: ≤ 0,51 µm Ra – SF1. External: ≤ 0,76 µm Ra – SF3. Other surface conditions see TIS.GIA – General information ADCAPure. Ultrasonic cleaning. Leakage line connection. Dome-loading. Top cap (adjustment screw with cover). Gauge connection on body. Lock system, allows inline clean-in-place (CIP) and sterilization-in-place (SIP) operations. Bottom cover with drain connection. Different soft sealings for liquids and gases. Degreased for oxygen application. Clean steam, compressed air, water and other gases and liquids compatible with the construction. ASME BPE, DIN and ISO clamp ferrules or tube weld (ETO) ends. Others on request. Assembling and packaging in a clean room certified according to ISO 14644-1. Horizontal installation. See IMI – Installation and maintenance instructions.
