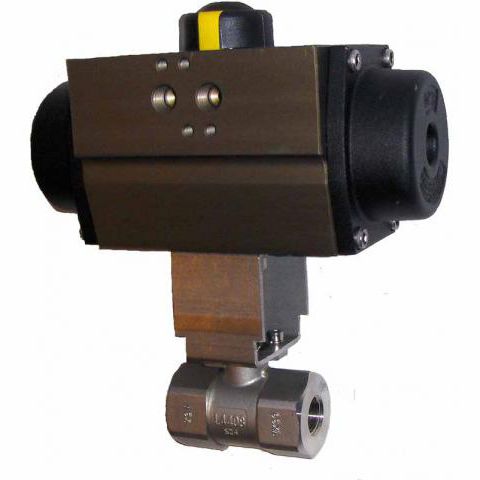

Ball valve S24electrically-actuatedpneumatically-operatedfemale
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- electrically-actuated, pneumatically-operated
- Body
- female
- Number of channels
- 2-way
- Other characteristics
- automatic
- DN
Min.: 8 mm
(0.315 in)Max.: 50 mm
(1.969 in)- Pressure
400 bar
(5,801.5 psi)- Temperature
Min.: -20 °C
(-4 °F)Max.: 160 °C
(320 °F)
Description
DESCRIPTION
• 2-way ball valve BSP female threated
• Full bore
• Body, Ball and Stem SS316
• Mounting flange ISO 5211 for mounting pneumatic or electric actuators
• Seats PEEK
• Working pressure maximum 400 Barg
• Temperature -20° up to 160° C.
• Suitable for vacuum
OPTIONS
• Automatic electric or pneumatic actuation
• Stem extension
• Endswitches
CERTIFICATS
• 3.1 Material certificats
• CE declaration
