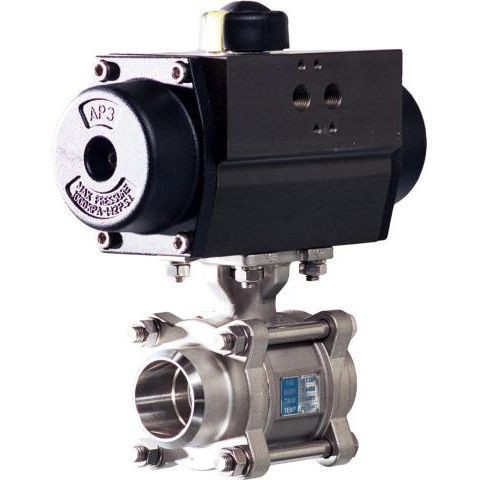

Ball valve S13D / C33Delectrically-actuatedpneumatically-operatedfemale
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- electrically-actuated, pneumatically-operated
- Body
- female, lockable
- Number of channels
- 2-way
- Other characteristics
- anti-static, automatic, fire-safe
- DN
Max.: 100 mm
(3.937 in)Min.: 15 mm
(0.591 in)- Pressure
63 bar
(913.7 psi)- Temperature
Max.: 180 °C
(356 °F)Min.: -30 °C
(-22 °F)
Description
DESCRIPTION
• 2-way ball valve with BSP, NPT female threaded or BW ends
• Full bore
• Body SS316 or Carbin steel, ball and stem in SS316
• Mounting flange ISO 5211 for direct mounting pneumatic or electric actuators
• Seats PTFE
• Working pressure maximum 63 Barg
• Temperature -30º up to + 180º C.
• Face to face BSP according to DIN 3203 M4, for But weld ends according to DIN 3202 S13
• Blow-out proof stem, lockable lever
• Anti-static, suitable for vacuum
OPTIONS
• Automatic electric or pneumatic actuation
• Socket weld
• Stem extension
• Fire safe version according to API607 4e edition
• Spring return lever up to 4´´
CERTIFICATS
• 3.1 Material certificate
• CE declaration
• Fire safe according to API607 4e edition
• TA-luft declaration
