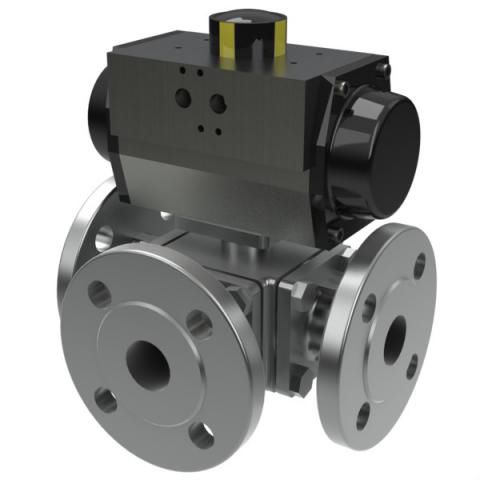

Ball valve S316Dleverelectrically-actuatedpneumatically-operated
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- lever, electrically-actuated, pneumatically-operated
- Body
- with flange, lockable, trunnion
- Number of channels
- 3-way
- Other characteristics
- ISO
- DN
Max.: 100 mm
(3.937 in)Min.: 15 mm
(0.591 in)- Pressure
16 bar
(232.1 psi)- Temperature
Max.: 200 °C
(392 °F)Min.: -30 °C
(-22 °F)
Description
DESCRIPTION
• 3-way ball valve with flange connection PN16
• Full bore, L- or T-port
• Body, ball and stem SS316
• Mounting flange ISO 5211 for direct mounting pneumatic or electric actuators
• Seats and seals PTFE
• Pressure class PN16, flange RF DIN2501
• Blow-out proof stem, lockable lever
• Anti-static
• Temperature -30º C up to 200° C.
• DN 65, 80 and 100 Trunnion Mounted
OPTIONS
• Automatic electric or pneumatic actuation
• Stem extension
• Endswitches
• Spring return lever up to DN 50
• 4-way version L-T-X or I port
• TFM seat rings
• Peek seat rings
• Integral seat rings
CERTIFICATS
• 3.1 Material certificate
• CE declaration
