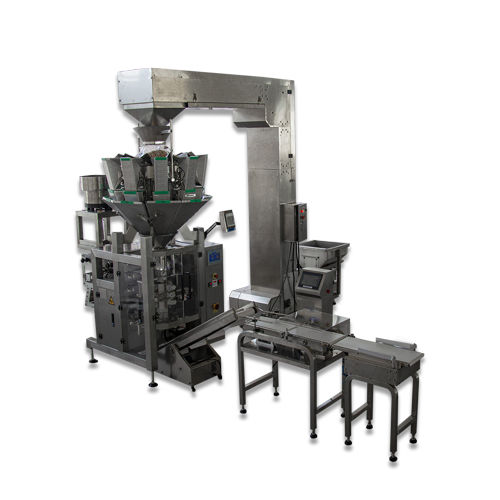

Vertical bagging machine SW-VPM 10 / 14-420weightPLC-controlledfor the food industry
Add to favorites
Compare this product
Characteristics
- Type
- vertical
- Technology
- weight
- Operational mode
- PLC-controlled
- Application domain
- for the food industry
- Other characteristics
- with multi-head weigher
- Throughput
60 p/min
Description
Compressed air: 6.5 bar
Weight: 800 Kg
Electric power: 380 V, 50 Hz, 60 Hz, 3.7 kW
Dimensions LxWxH: 990x1430x2200 mm
Bag Length: 50-300 mm
Weighing accuracy: ± 0.5-1.5 g
Packing material: OPP / CPP, OPP / CE, PET, PE
Wrap type: Pillow hole bag
Features
PLC control system + English interface
Packing speed up to 60 bags / min depends from bag size and product
7 inch touch screen display Siemens
Max. roll film width 420 mm
Sealing type: Pillow type with hole or Stand bag with hole
Measuring range 30-1200 cm³
Gas consumption 0.3m³ / min (it is possible to connect the nitriding function)
Film pulling system driven by Siemens servo motor
VIDEO
