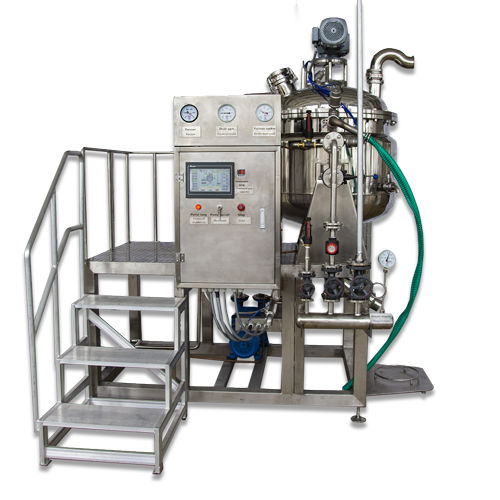

Vacuum industrial cooker SW-С300steamin-linefor confectionery products
Add to favorites
Compare this product
Characteristics
- Type
- steam, vacuum
- Batch/continuous
- in-line
- Food product
- for confectionery products
- Tank characteristics
- single-tank
- Command control
- with touch screen, with programmable logic controller (PLC)
- Characteristics of the lid/door
- manual lifting of the lid
- Material
- stainless steel
- Other characteristics
- automatic
- Max temperature
110 °C, 117 °C, 125 °C, 135 °C
(230 °F, 243 °F, 257 °F, 275 °F)- Compressed air supply
0.6 MPa
- Electrical power
6 kW
(8 hp)- Machine length
2,900 mm
(114 in)- Machine width
2,000 mm
(79 in)- Machine height
2,500 mm
(98 in)- Machine weight
1,100 kg
(2,425 lb)
Description
Capacity: 150~300 kg/h
Steam pressure: 0.5 MPA
Steam consumption: Approx. 100 kg/h
Features
PLC/computer process control available
An LED touch panel for easy operating
The main parts are made of hygienic stainless steel
Optional(mass) flowing controlled by frequency inverters
In-line injection, dosing and pre-mixing techniques for the proportional addition of liquid
Dosing pump for the automatic mass feeding
Use Automatic steam control system instead of manual steam valve which controls a stable
