Plastic pulverizer PNMF-Plus

discbladevertical

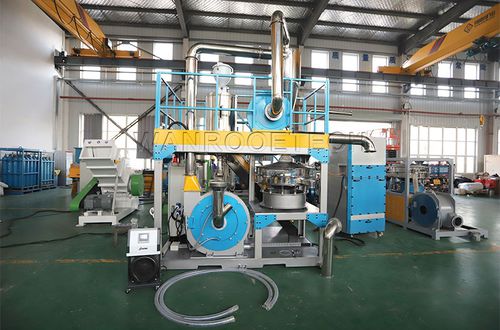

Waste PET Plastic Film Agglomerator Pulverizer Mill Grinder Machine of the PNMF series is available with disc diameter from 300 to 800 mm. These plastic pulverizer machines are high speed, precision grinders for the processing of medium-hard, impact resistant and friable materials. The material to be pulverized is introduced through the center of a vertically fixed grinding disc which is mounted concentrically with an identical high speed rotating disc. Centrifugal force carries the material through the grinding area and the resulting powder is collected with a blower and cyclone system. Depending on the application the machines can be equipped with one-piece grinding discs or grinding segments. The plastic film agglomerator pulverizer machine is mainly composed of an electric motor, disc-type blade, feeding fan, vibrating sieve, dust removal system, etc. According to the customer’s needs, you can choose some accessories, such as a converter, vacuum loader, screw loader, magnetic net, metal separator, chiller, pulse dust collector, metering and weighing packaging machine, etc. Waste PET Plastic Film Agglomerator Pulverizer Mill Grinder Machine Technical Features: 1. The new disc design is of high quality, and strong resistance and the life of this grinding disc is double the ordinary ones. 2. The newly designed professional bearings is with a high rotation rate. At the same time using only one drive motor ensures efficient grinding crash, which greatly saves the time of machine operation and engineering control. 3. Easy installation and maintenance, just open the door to clean up. 4. The whole milling process is sealed, without dust leakage.
