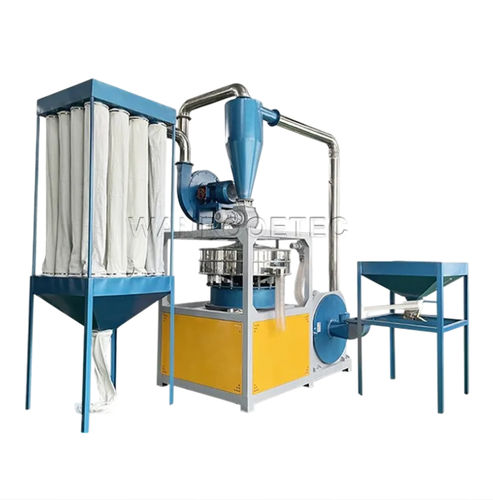

Waste pulverizer PNMP series

discvertical380V three-phase

This PNMP PVC Plastic mill is chiefly designed to grind PVC. The pulverizer uses turbo type blade. The static blade and rotary blade could be adjusted, thus you can get different size of PVC powder with one grinder. High output, low energy consumption and long lifespan attract many customers around the world. It can be used for PVC plastic from PVC pipe/profile/soft sheet/bottle/card from low to moderate hardness PVC. Technical Features: 1.The new disc design is with high quality, strong resistance and the life of this grinding disc is double the ordinary ones. 2. The newly designed professional bearings, is with a high rotation rate. At the same time using only one drive motor, to ensure the efficient grinding crash, which greatly saves the time of machine operation and engineering control. 3. Easy installation and maintenance, just open the door to clean up. 4. The whole milling process is sealed, without dust leakage. 5. Full automatic design, automatically feeding, discharging and sorting. 6. Grinding gap adjustment is simple, just use the feeler gauge and adjust bolts can be fine-tuning. 7. The mill uses the water and wind double cooling system, prevent bearing and other parts from overheating. 8. Using Well-known brand accessories, such as SKF bearings and Siemens motors, can work for a long time, saving the trouble of changing accessories frequently. Waste PVC Pulveriser Grinder PVC Powder Making Machine is designed by our factory using Germany technology and our own production experience. PVC pulverizer machine is used to grind waste PVC ceiling, PVC pipe, PVC profile, PVC marble sheet into fine powder. The capacity can be from 100-900kg/h(15-100mesh).
