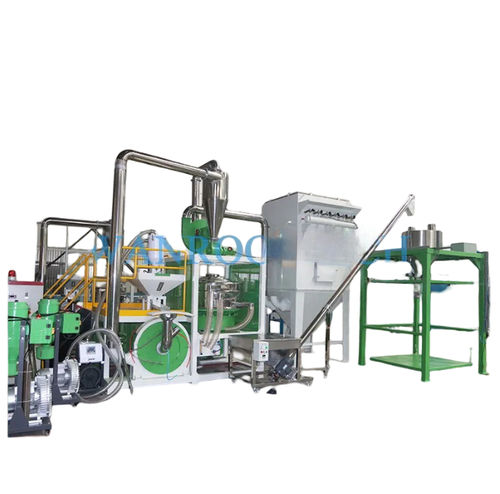

Powder pulverizer PNMF series

for plasticsdiscvertical

ABS EVA PVC PBT PA PC PTFE PMMA PS Plastic Pulverizer Mill Machine of the PNMF series is available with disc diameter from 300 to 800 mm. These plastic pulverizer machines are high speed, precision grinders for the processing of medium hard, impact resistant and friable materials. The material to be pulverized is introduced through the centre of a vertically fixed grinding disc which is mounted concentrically with an identical high speed rotating disc. Centrifugal force carries the material through the grinding area and the resulting powder is collected with a blower and cyclone system. Depending on the application the machines can be equipped with one piece grinding discs or grinding segments. The plastic pulverizer machine is mainly composed of electric motor, disc type blade, feeding fan, vibrating sieve, dust removing system, etc. According to the customer’s needs, you can choose some accessories, such as converter, vacuum loader, screw loader, magnetic net, metal separator, chiller, pulse dust collector, metering and weighing packaging machine, etc. Technical Features: 1. The new disc design is with high quality, strong resistance and the life of this grinding disc is double the ordinary ones. 2. The newly designed professional bearings, is with a high rotation rate. At the same time using only one drive motor, to ensure the efficient grinding crash, which greatly saves the time of machine operation and engineering control. 3. Easy installation and maintenance, just open the door to clean up. 4. The whole milling process is sealed, without dust leakage.
