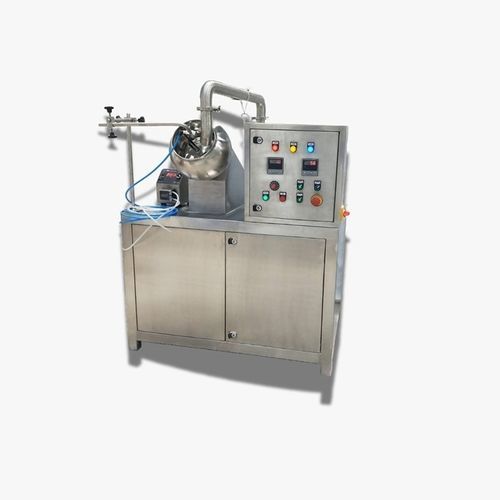

Laboratory coating machine

for film coatingfor pharmaceutical applicationsfor tablets

Overview
Tablet coating machine (also referred to as pill coating machine or conventional coating pan) engineered for laboratory to production-scale coating of tablets and pills. Custom-built cGMP models feature precision spray systems, controlled drying, and hygienic construction to ensure uniform coating, minimal coating losses and high process efficiency.

Key Features

• Capacity: Laboratory to production models ranging from 6" to 72" coating pans.
• Construction: SS316 / SS304 food-grade stainless steel; product contact parts: SS316L (cGMP compliant).
• Precise pan speed control (VFD) for uniform coating.
• Integrated hot air blower with auto cutoff and digital PID-based inlet air temperature control.
• Optional exhaust blower with wet scrubber to minimize dust.
• Peristaltic pump with precise spray gun for controlled solution delivery; adjustable spray gun mounting stand.
• Solution preparation vessel with stirrer and optional trolley with castors.
• Designed for film coating, sugar coating and aqueous coating processes; supports enteric, gelatin, compression and controlled-release coatings.

Models & Configurations

• Laboratory scale models: 2 kg and 5 kg (pan sizes 6", 12", 15"), ideal for R&D and trial batches.
• 24 inch model: Small commercial / pilot production (typical output 200–300 kg/day).
• 36 inch model: Medium-scale production (typical output 400–500 kg/day).
• 48 inch model: Large-scale batch production (typical output 1000–1500 kg/day).
• 72 inch and other larger pans available for higher capacities (batch up to several hundred kg, scalable by model).

Standard Technical Table
Sr no | Pan Size (inch) | Working capacity (kg) | No of Baffles | Pan Material | Body & Other parts Material | Main Motor (HP) | Blower Motor (HP) | Heater (kW) | Peristaltic pump | Solution tank with stirrer | Power supply | Power consumption (kWh)
1 | 6 | 0.2-0.5 | 3 | SS316 | SS304 | 0.25 | 0.5 | 0.9 | Yes | Optional | Three Phase 415 V | 1.2
2 | 12 | 2-4 | 3 | SS316 | SS304 | 0.25 | 0.5 | 1.5 | Yes | Optional | Three Phase 415 V | 1.7
3 | 15 | 10-15 | 3 | SS316 | SS304 | 0.5 | 0.5 | 2.3 | Yes | Optional | Three Phase 415 V | 2.5
4 | 18 | 20-25 | 3 | SS316 | SS304 | 0.5 | 0.5 | 2.3 | Yes | Optional | Three Phase 415 V | 2.5
5 | 24 | 30-40 | 3 | SS316 | SS304 | 1 | 0.5 | 3 | Yes | Optional | Three Phase 415 V | 4
6 | 30 | 60-90 | 3 | SS316 | SS304 | 1 | 0.5 | 3 | Yes | Optional | Three Phase 415 V | 6
7 | 36 | 90-120 | 4 | SS316 | SS304 | 2 | 0.5 | 4.5 | Yes | Optional | Three Phase 415 V | 6
8 | 42 | 120-150 | 6 | SS316 | SS304 | 3 | 1 | 6 | Yes | Optional | Three Phase 415 V | 6
9 | 48 | 150-180 | 6 | SS316 | SS304 | 5 | 2 | 9 | Yes | Optional | Three Phase 415 V | 11
10 | 60 | 200-250 | 8 | SS316 | SS304 | 7.5 | 2 | 9 | Yes | Optional | Three Phase 415 V | 11
11 | 72 | 350-400 | 8 | SS316 | SS304 | 7.5 | 3 | 18 | Yes | Optional | Three Phase 415 V | 20

Controls, Safety & Instrumentation

• VFD-controlled pan speed and digital PID-based inlet air temperature control.
• Control panel features: main power on/off, pan on/off & speed control, blower on/off, heater on/off, peristaltic pump on/off, solution tank stirrer on/off.
• Real-time display of pan RPM and temperature; process monitoring and overload protection.
• Emergency stop (mushroom type) and electrical design per applicable safety standards.

Air Handling & Filtration

• Optimized air handling system with pre-filtration; HEPA filtration available as an optional upgrade for higher GMP requirements.
• Integrated hot air blower; optional exhaust blower and wet scrubber to control particulate and fumes.

Applications

• Pharmaceutical, nutraceutical, Ayurvedic tablets and pill coating (film coat, sugar coat, enteric, gelatin, compression and controlled-release coatings).
• R&D trials, pilot production and full-scale commercial manufacturing.

Documentation & Validation Support
Equipment documentation available: equipment manual, GA drawings, electrical drawings, material specifications and test reports. Additional DQ/IQ/OQ/PQ support can be provided on request (per customer validation procedures).

Technical specifications

• Product name: Tablet Coating Machine (cGMP model available).
• Manufacturer: Wecan Engineering Solutions.
• Pan sizes: 6" to 72" (standard sizes listed in table).
• Batch capacities: laboratory (0.2–0.5 kg) up to production (350–400 kg working capacity per batch for 72" pan; throughput depends on model).
• Materials: Product contact parts SS316L; non-contact parts SS304 or MS cladded with SS304.
• Baffles: 3–8 depending on pan size (see table).
• Drive & motors: VFD pan speed control; main motors from 0.25 HP (lab) up to 7.5 HP (large models); blower motors range 0.5–3 HP.
• Heating: Heaters sized from ~0.9 kW up to 18 kW depending on model.
• Peristaltic pump: Standard (speed control); spray gun with adjustable mount provided.
• Solution preparation: Tank with stirrer; trolley with castors available for pump & tank.
• Power supply: Typically Three Phase 415 V; power consumption values included per model in table.
• Options: HEPA filtration, exhaust/wet-scrubber, custom automation level, custom pan sizes and materials per process requirements.
