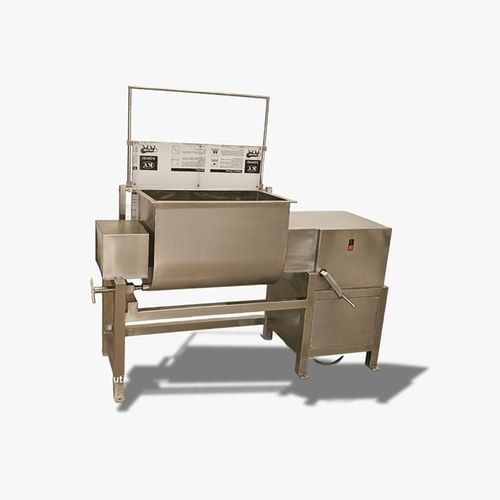

Paddle mixer

batchgas/liquidpowder

Overview
Mass Mixer Machine is engineered for uniform, repeatable mixing of powders, granules, wet masses and semi-solid materials. cGMP configurations ensure hygienic product contact surfaces and controlled mixing suitable for pharmaceutical, nutraceutical and food processing applications.

Key features

• Batch capacity range: laboratory (2, 5, 10 kg) to production (50, 100, 200 kg)
• Product-contact material: SS316; non-contact structure: SS304
• Heavy-duty paddle agitator for intensive, uniform mixing
• Top transparent polycarbonate sliding lid for process visibility
• Optional: variable speed drive, timer and safety interlocks
• Design options: cGMP and non-GMP configurations; customizable finishes and controls

Models & options
Available models cover R&D and scale-up needs through full production. Units are offered in cGMP and standard versions with options for motor power, discharge type (manual or automated) and control interfaces. Customization is available on request to meet process or regulatory requirements.

Model variants (summary)

• Laboratory scale mass mixer — compact units for formulation trials and small batches (2 kg, 5 kg, 10 kg)
• 50 kg mass mixer — cGMP model, gross volume approx 125 L, suitable for 50 kg batches
• 100 kg mass mixer — cGMP model, gross volume approx 225 L, suitable for 100 kg batches
• 200 kg mass mixer — cGMP model, gross volume approx 450 L, suitable for 200 kg batches

Machine specifications

• 2 kg model — contact parts SS316, non-contact SS304, motor 0.37 kW, single phase, paddle mixing
• 5 kg model — contact parts SS316, non-contact SS304, motor 0.75 kW, single phase, paddle mixing
• 10 kg model — contact parts SS316, non-contact SS304, motor 0.75 kW, single phase, paddle mixing
• 50 kg model — contact parts SS316, non-contact SS304, motor 2.2 kW, three phase, paddle mixing
• 100 kg model — contact parts SS316, non-contact SS304, motor 3.7 kW, three phase, paddle mixing
• 200 kg model — contact parts SS316, non-contact SS304, motor 7.5 kW, three phase, paddle mixing

Laboratory scale (details)

• Models: cGMP and non-GMP options
• Batch capacities: 2 kg, 5 kg, 10 kg
• Materials: SS316 product-contact; SS304 non-contact
• Typical motor: 0.75 kW for lab models
• Mixing bin thickness: 2.5 mm
• Top cover: transparent polycarbonate sliding lid
• Options: variable speed controller, timer, safety interlocks
• Customization: available on request for R&D needs

50 kg model (details)

• Model: cGMP and non-GMP (optional)
• Batch capacity: 50 kg; gross volume approx 125 L
• Material: SS316 contact / SS304 non-contact
• Motor: 2.2 kW
• Mixing bin thickness: 3 mm
• Top cover: transparent polycarbonate sliding lid
• Options: variable speed controller, custom discharge

100 kg model (details)

• Model: cGMP and non-GMP (optional)
• Batch capacity: 100 kg; gross volume approx 225 L
• Material: SS316 contact / SS304 non-contact
• Motor: 3.7 kW
• Mixing bin thickness: 3 mm
• Top cover: transparent polycarbonate sliding lid
• Options: variable speed controller, custom discharge

200 kg model (details)

• Model: cGMP and non-GMP (optional)
• Batch capacity: 200 kg; gross volume approx 450 L
• Material: SS316 contact / SS304 non-contact
• Motor: 7.5 kW
• Mixing bin thickness: 3 mm
• Top cover: transparent polycarbonate sliding lid
• Options: variable speed controller, automated discharge

Applications

• Pharmaceutical manufacturing: wet granulation and blending of APIs and excipients
• Nutraceuticals and supplements: powder blends and premixes
• Herbal and Ayurvedic product processing
• Food industry: seasonings, premixes and functional ingredient blending
• Chemical and cosmetic processes involving powders and semi-solids

Key features & benefits

• Precision mixing with optimized paddle design for repeatable blends
• Hygienic cGMP design with SS316 product-contact surfaces for easy cleaning
• Scalable configuration from lab to production up to 200 kg
• Energy-efficient motor selections with optional VFD
• Low-maintenance access and modular components for fast servicing
• Safety provisions including lid interlocks and emergency stop

Technical specifications

• Product name / model: Mass Mixer Machine
• Contact material: SS316 (pharmaceutical and food grade)
• Non-contact material: SS304
• Available capacities: 2, 5, 10, 50, 100, 200 kg
• Mixing type: paddle mixing with heavy-duty agitator
• Motor power examples: 0.37 kW to 7.5 kW depending on model
• Power supply: single phase for small lab models; three phase for production units
• Mixing bin thickness: 2.5 mm (lab), 3 mm (production)
• Standard top cover: transparent polycarbonate sliding lid
• Control options: variable speed, timer, safety interlocks; custom automation available
• Typical mixing time: 5–20 minutes depending on formulation and batch size
