Powder mill

foodfor plasticsfor spices

Overview

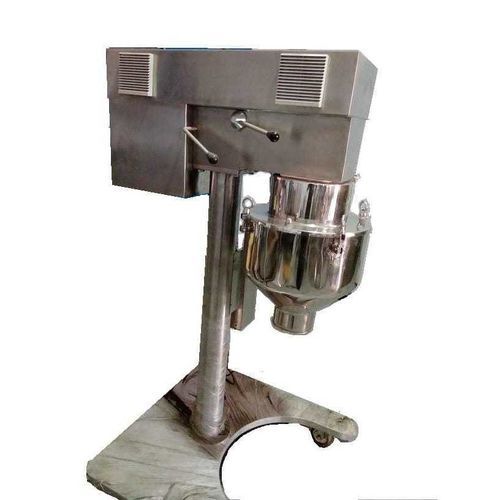

Multi Mill Machines are industrial milling units for controlled particle size reduction across pharmaceutical, food, nutraceutical and chemical production. Manufactured by Wecan Engineering Solutions in India, these units are engineered for repeatable milling, adjustable throughput and compatibility with various feed materials.

Working Principle

• Variable force application to achieve targeted particle size reduction.
• Rotating knife and sharp-edged blades cut and shear materials.
• Validated cylindrical screen ensures consistent particle sizing.
• Grinding and crushing stages reduce material to fine particles.
• Supplementary hammering action for additional size reduction of coarse particles.

Key Components / Parts

• Variable speed drive for process adaptation.
• Control panel with operational settings and safety interlocks.
• Feeding screw conveying material from hopper to milling chamber.
• Scraper blades to prevent buildup and ease discharge/cleaning.
• Cylindrical/validated screens for output control.
• Castor wheels for mobility and positioning on the shop floor.
• Optional flameproof electrical components to meet hazardous-area requirements.

Uses

• Pharmaceuticals: granulation, pulverization, formulation prep.
• Food processing and spice/herbal milling.
• Cosmetics and pigment/dye processing.
• Chemicals, plastics and resin size reduction.
• Agricultural product processing and feed applications.

Price (indicative)
Standard Automatic (3 HP): ₹1,10,000–₹1,35,000. Semi-Automatic (50–300 kg/h): ~₹1,02,000. High-Capacity (5 HP): up to ₹1,45,000+. Final price depends on customization, screening options and safety/explosion-proof features.

Technical specifications

• Commercial name: Multi Mill Machine
• Manufacturer / Brand: Wecan Engineering Solutions
• Typical power options: 3 HP (standard automatic), 5 HP (high-capacity)
• Capacity (semi-automatic example): 50–300 kg/h
• Milling elements: rotating blades (knife/sharp edges), hammering mechanism
• Screen: validated cylindrical screens for controlled sizing
• Drive: variable speed drive
• Feeding: screw feeder from hopper to milling chamber
• Discharge/cleaning: scraper blades
• Mobility: castor wheels
• Electrical safety: flameproof components available as option
