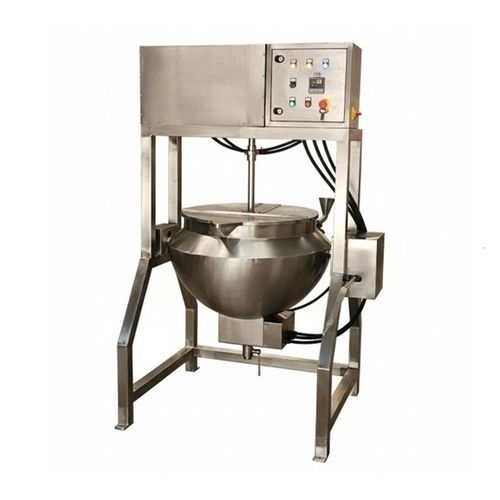

Double-jacketed industrial cooker

steamelectricbatch

Overview
The Paste Kettle Machine is a cGMP-compliant, jacketed processing vessel engineered for uniform heating and controlled agitation to produce pastes, starch dispersions, creams, gels, syrups and sauces for pharmaceutical, nutraceutical, cosmetic and food manufacturing. Available in laboratory, pilot and production scales with steam or electric heating and hygienic, CIP-capable design.

Applications

• Preparation of starch pastes and semi-solid pharmaceutical formulations (ointments, medicated creams, gels)
• Food processing: sauces, syrups and high-viscosity food products
• Nutraceutical and cosmetic paste manufacturing

Key Features

• Jacketed vessel for uniform heat distribution (steam or electric) to prevent local overheating
• Anchor or scraper agitators designed for lump-free mixing of high-viscosity materials
• cGMP hygienic construction with SS316 / SS316L product-contact surfaces and smooth internal finish
• Digital PID temperature control for precise thermal regulation
• CIP-compatible ports and geometry for efficient clean-in-place operations
• Discharge options: manual tilting kettle with handwheel or bottom discharge valve for controlled product removal
• Industrial-grade motor and gearbox for reliable torque and speed control
• Safety features include pressure relief valve, interlocks and temperature alarms

Models / Typical Uses

• Laboratory-Scale Paste Kettle – compact unit for R&D, formulation trials and pilot batches
• Production-Scale Paste Kettle – industrial unit for batch production (standard capacities 50 L and 100 L; larger custom sizes available)

Typical Technical Specifications (comparative)
Feature | Paste Kettle - 50 L | Paste Kettle - 100 L
Working Volume | 50 L | 100 L
Product Contact Parts | SS316L | SS316L
Non-contact Parts | SS304 | SS304
Motor Power | 1 HP | 1 HP
Dimensions | 900×800×1300 mm | 1200×900×1850 mm
Weight | 70 kg | 120 kg
Input Power | 415 V / 50 Hz / 3-Phase | 415 V / 50 Hz / 3-Phase
Warranty | 12 Months | 12 Months

Design & Operation Details

• Material of construction: SS316L for product-contact surfaces; SS304 or MS cladded with SS304 for non-contact parts
• Heating method: jacketed vessel with steam or electric heating for uniform thermal transfer
• Temperature range: typically 40°C to 100°C controlled via digital PID controller
• Agitation: anchor or scraper agitator with reduction gearbox for controlled speed and torque
• Discharge: manual tilting mechanism with handwheel; optional bottom discharge valve
• Cleaning: CIP-compatible ports and internal geometry for effective cleaning-in-place
• Control: centralized panel for operation, monitoring and safety interlocks
• Compliance: designed to meet cGMP and hygienic processing requirements

Technical Specifications

• Standard working capacities: 50 L and 100 L (custom sizes on request)
• Product contact materials: SS316 / SS316L
• Non-contact materials: SS304 or mild steel cladded with SS304
• Heating options: jacketed steam or electric heating
• Temperature control: digital PID controller
• Agitator types: anchor or scraper for high-viscosity products
• Motor: industrial motor with reduction gearbox (standard 1 HP for listed models)
• Discharge: manual tilting with handwheel or bottom discharge valve
• Cleaning: CIP compatible
• Safety: pressure relief valve, safety interlocks and alarms
• Power supply: 415 V / 50 Hz / 3-Phase (standard)
• Design compliance: cGMP / hygienic sanitary welding and smooth internal finish
