Granules batch blender

for solidsfor fragile productspowder

Overview

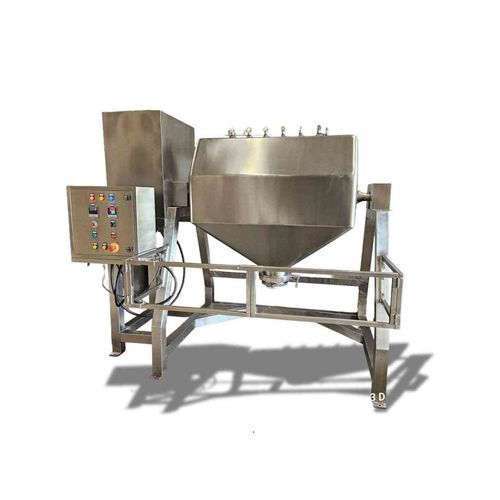

The Octagonal Blender Machine is a tumble blender designed for low-shear, uniform mixing of dry powders and granules. Available in laboratory and production scales with cGMP-compliant configurations for pharmaceutical, nutraceutical and food industries. Product-contact surfaces are stainless steel SS316 / SS316L; non-contact structures typically SS304 or mild steel cladded with SS304.

Key features

• Capacity range: laboratory units up to 5000 kg industrial batches.
• SS316 / SS316L product-contact construction for hygiene and cleanability.
• VFD speed control, jog mode and digital timer options.
• Safety features: interlocks, safety railing and emergency stop.
• Options: PLC/HMI automation, recipe control, vacuum/dust-tight charging and custom discharge valves.
• Designed for gentle tumbling to protect fragile or heat-sensitive powders.

Model variants (typical)

• Laboratory scale octagonal blender: compact R&D model; batch capacities 2 kg, 5 kg, 10 kg; gross volumes 6 L, 15 L, 30 L.
• 100 kg model: GMP production model, gross volume ~300 L (suitable for 100 kg batch).
• 200 kg model: GMP production model, gross volume ~600 L (suitable for 200 kg batch).
• 500 kg model: GMP production model, gross volume ~1500 L (suitable for 500 kg batch).
• Production/industrial models scalable up to 5000 kg batch capacity.

Working principle
The octagonal chamber rotates about a horizontal axis causing powder to lift, cascade and intermix in multi-directional patterns. The polygonal geometry reduces dead zones and promotes uniform mixing with minimal heat generation and particle degradation. Typical blend cycles: 10–20 minutes, depending on material and fill level.

Table - Typical machine specifications (summary)
Sr. No. | Gross Volume (L) | Working capacity (kg) | Product Contact Parts | Non-Contact Parts | Main Motor Power (HP) | Overall Dimensions (mm) | Machine Weight (kg) | Power Supply | Avg. Power Consumption (kWh) 1 | 6, 15, 30 | 2, 5, 10 | SS316 | SS304 | 0.5 HP | 3000x600x800 | 70 | Single Phase | 0.37 2 | 300 | 100 | SS316 | SS304 | 2 HP | 1200×900×1250 | 190 | Three Phase | 1.5 3 | 600 | 200 | SS316 | SS304 | 3 HP | 1300×1100×1300 | 300 | Three Phase | 2.2 4 | 1500 | 500 | SS316 | SS304 | 10 HP | 1600×1200×1700 | 760 | Three Phase | 7.5

Options & customization

• Dust-free bin charging / vacuum loading systems to minimise airborne particles.
• Discharge choices: TC-ended discharge, manual butterfly valves (e.g. 6" or 10" depending on model) or automatic valves on request.
• Automation: VFD speed control, RPM indicator, timers, PLC/HMI with recipe control and data logging.
• Electrical options: standard three-phase or flameproof/ex-proof assemblies for hazardous areas.
• Validation support: DQ, IQ, OQ, PQ and FAT documentation available.

Applications
Suitable for pharmaceuticals, nutraceuticals, herbal & ayurvedic powders, food ingredients and spices, cosmetics and speciality chemicals where hygiene, repeatability and low-shear handling are required.

Technical specifications

• Designation: Octagonal Blender Machine.
• Construction: SS316 / SS316L for product-contact; SS304 or MS cladded with SS304 for non-contact structures.
• Capacity examples: 2 kg – 5000 kg (common batches: 2, 5, 10, 25, 50, 100, 200, 300, 500, 1000, 2000, 5000 kg).
• Gross volume examples: 6 L, 15 L, 30 L, 75 L, 150 L, 300 L, 450 L, 600 L, 800 L, 900 L, 1500 L.
• Motor power examples: 0.5 HP up to 50 HP depending on capacity.
• Gearbox options: Elecon, Redicon, CPEC, Shanthi (selection by model).
• Power supply: single-phase for smallest lab units; three-phase for production models.
• Safety: interlocks, guards, emergency stop, overload protection and earthing.
• Discharge heights: typical options 300 mm or 450 mm; valve sizes vary by model.
• Finish: polished interiors, tool-free access panels and quick-disconnect fittings for cleaning and maintenance.
