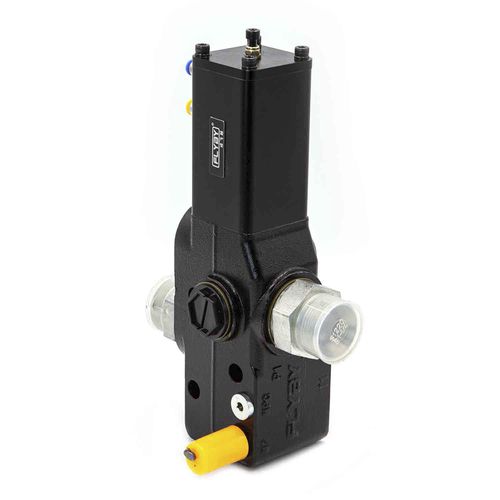

Lift valve HT-1350

hydraulicfor oilflange-mounted

1.Rated pressure 25Mpa 2. Rated flow 350L/min 3. Air pressure control 0.6~1Mpa 4. Working temperature -20 to 80°C 5. Working medium : Anti-wear hydraulic oil Suitable for heavy-duty dump trucks, open hydraulic systems, single-acting cylinders, can be installed on the oil tank (standard) and other positions (special instructions). There are four functions: lifting, mid-stop, lowering, and slow lowering. The slow lowering function can be achieved by controlling the slow lowering switch of the air valve. Equipped with a check valve and an adjustable relief valve to achieve reliable protection for the entire system. The valve body adopts electrophoretic coating, which greatly increases the adhesion and salt spray resistance of the product. The operating conditions are divided into normal (-20°C~80℃) and low temperature environment (-40℃~80℃), which need to be specially stated when ordering.
