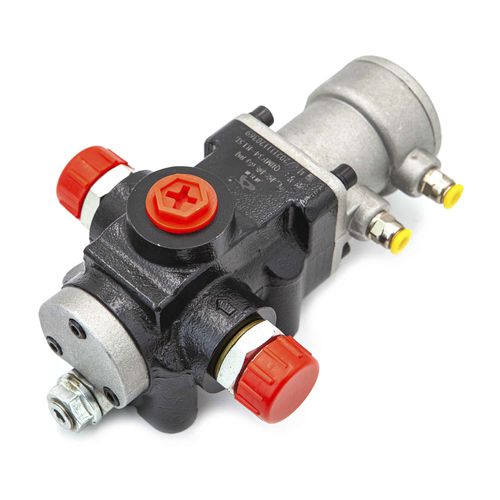

Lift valve QHF34-E15L serieshydraulicflow controlstop
Add to favorites
Compare this product
Characteristics
- Type
- lift
- Operation
- hydraulic
- Function
- flow control, stop, regulating
- Media
- for oil
- Body
- flange-mounted, male, male-female, screw-in
- Applications
- for excavators, for garbage truck, for dumpers
- Material
- cast iron, steel
- Number of channels
- 2/2-way
- Fluid specification
- for fluids with lubricating properties
- Associated function
- unloading, load
- Other characteristics
- single-acting, ISO, standard, compact, high-pressure, wear-resistant, full-flow, normally closed, high-performance, corrosion-resistant, high-performance, heavy-duty, high-flow, rugged
- Pressure
Min.: 0.6 MPa
Max.: 25 MPa
- Temperature
Min.: -20 °C
(-4 °F)Max.: 80 °C
(176 °F)- Flow rate
80 l/min, 220 l/min
(21.13 us gal/min, 58.12 us gal/min)
Description
Suitabie for small agricuttural dump trucks. open center hydraulic system, single-acting oil cylinder occasions. It has three functions of tipping. stopping and lowering. The product with adjustable relief valve can realize reliable protection for the whole system. The valve body adopts electrophoretic coating, which greatly increases the adhesion and sait spray résistance of the product.
Technical data:
1.Rated pressure 25Mpa
2. Rated flow 220L/min
3. Air pressure control 0.6~1Mpa
4. Working temperature -20 to 80°C
5. Working medium : Anti-wear hydraulic oil
