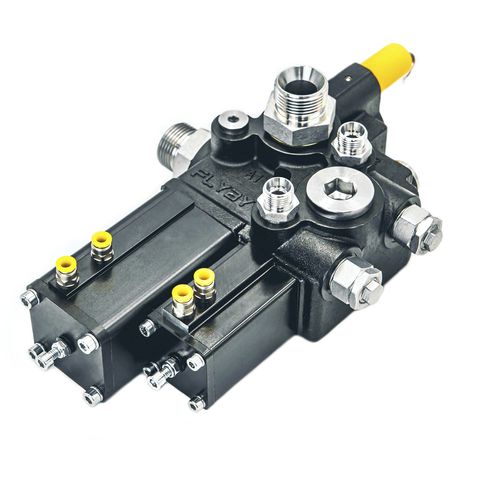

Lift valve QSYX-F20L-2 hydraulicflow controladjustment
Add to favorites
Compare this product
Characteristics
- Type
- lift
- Operation
- hydraulic
- Function
- flow control, adjustment, stop, regulating
- Media
- for oil
- Body
- flange-mounted, male, male-female, screw-in, compact
- Applications
- for dumpers
- Material
- cast iron, steel, aluminum
- Number of channels
- 2/2-way
- Fluid specification
- for fluids with lubricating properties
- Associated function
- unloading, load
- Other characteristics
- compact, ISO, standard, full-flow, normally closed, corrosion-resistant, rugged, high-performance, high-performance, double-acting, bypass, single-acting, heavy-duty, high-flow, proportional, wear-resistant
- Pressure
Min.: 22 MPa
Max.: 25 MPa
- Temperature
Min.: -20 °C
(-4 °F)Max.: 80 °C
(176 °F)- Flow rate
Min.: 20 l/min
(5.28 us gal/min)Max.: 100 l/min
(26.42 us gal/min)
Description
It is suitable for dump trucks with environmental protection iron cover or hydraulic tail hook, and it is open centerhydraulic system. The first coupling can realize three functions of lifting, stopping and descending, in which thedescending function can realize proportional descending by controling the moving position of the valve. which isapplicable to the occasion of single-acting cylinder. The second link can realize three functions of lifting, stoppingand descending, which is suitable for double-acting cylinders. The second link is equipped with pressurecompensation flow adjustment function, which effectively saves energy and reduces consumption. The valve bodyadopts electrophoretic coating, which greatly increases the adhesion and salt spray resistance of the product.
1. Rated pressure 25Mpa
Top pressure 20Mpa
2. Rated flow 100L/min Top 60L/min
3. Working temperature -20 to 80℃
4. Working medium: Anti-wear hydraulic oil
Catalogs
No catalogs are available for this product.
See all of Weifang Chengfeiyue Hydraulic Machinery Co., Ltd.‘s catalogsOther Weifang Chengfeiyue Hydraulic Machinery Co., Ltd. products
