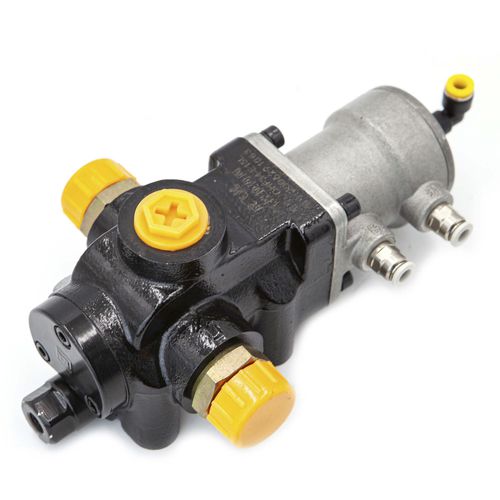

Lift valve QHFM34-E15Lhydraulicflow controlstop
Add to favorites
Compare this product
Characteristics
- Type
- lift
- Operation
- hydraulic
- Function
- flow control, stop, pressure-control, flow control, pneumatic pressure-control
- Media
- for oil
- Body
- flange-mounted, male, male-female
- Other characteristics
- rugged, compact, ISO, wear-resistant, standard, high-pressure, full-flow, normally closed, corrosion-resistant, high-flow, high-performance, bypass, single-acting, heavy-duty
- Pressure
Min.: 0.6 bar
(8.7 psi)Max.: 25 bar
(362.6 psi)- Temperature
Min.: -20 °C
(-4 °F)Max.: 80 °C
(176 °F)- Flow rate
100 l/min, 220 l/min
(26.42 us gal/min, 58.12 us gal/min)
Description
Suitable for small agricultural dump trucks, open center hydraulic system, single-acting oil cylinderoccasions. lt has three functions of tipping, stopping and lowering. The product with adjustable relief valvecan realize reliable protection for the whole system. The valve body adopts electrophoretic coating, whichgreatly increases the adhesion and salt spray resistance of the product.
1.Rated pressure 25Mpa
2. Rated flow 220L/min
3. Air pressure control 0.6~1Mpa
4. Working temperature -20 to 80°C
5. Working medium : Anti-wear hydraulic oi
