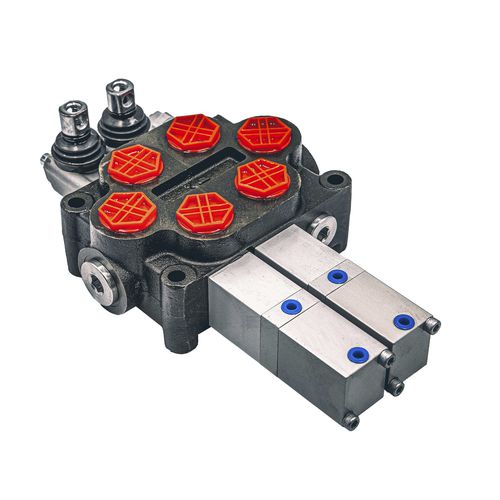

Electro-pneumatic pneumatic directional control valve ZT20DQ spool
Add to favorites
Compare this product
Characteristics
- Type
- spool
- Actuating method
- electro-pneumatic
- Operating pressure
200 bar
(2,900.75 psi)- Flow rate
Min.: 40 l/min
(10.6 us gal/min)Max.: 100 l/min
(26.4 us gal/min)
Description
1. Rated pressure ：
2. Rated flow ：
3. Operating range: 15-75mm2/s
4. Working temperature ：-40 to 80℃
5. Min viscosity：12mm2/s
6. Max viscosity：400mm2/s
7. Monoblock：1-7 sections
8. Control type: manual, Joystick, cable,etc.
