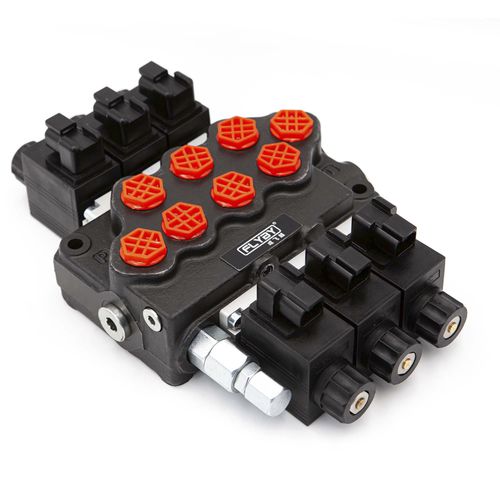

Manual valve SD5 Solenoidpneumaticelectro-hydraulicmonobloc
Add to favorites
Compare this product
Characteristics
- Operation
- manual, pneumatic, electro-hydraulic
- Body
- monobloc
- Pressure
Min.: 0 bar
(0 psi)Max.: 315 bar
(4,568.7 psi)- Temperature
Min.: -40 °C
(-40 °F)Max.: 80 °C
(176 °F)- Flow rate
45 l/min, 75 l/min
(11.89 us gal/min, 19.81 us gal/min)
Description
1. Rated pressure ：315bar
2. Rated flow ：45 and 75L/min
3. Operating range: 15-75mm2/s
4. Working temperature ：-40 to 80℃
5. Min viscosity：12mm2/s
6. Max viscosity：400mm2/s
7. Monoblock：1-7 sections
8. Control type: manual, cable, solenoid, pneumatic, electro-hydraulic, etc.
