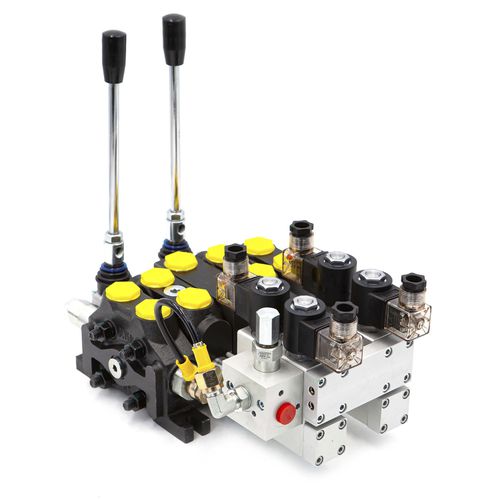

Manual valve DCVDY electro-hydraulicpneumaticelectro-hydraulicmonobloc
Add to favorites
Compare this product
Characteristics
- Operation
- manual, pneumatic, electro-hydraulic
- Body
- monobloc
- Pressure
Max.: 350 bar
(5,076.3 psi)Min.: 0 bar
(0 psi)- Temperature
Max.: 80 °C
(176 °F)Min.: -40 °C
(-40 °F)- Flow rate
Max.: 200 l/min
(52.83 us gal/min)Min.: 20 l/min
(5.28 us gal/min)
Description
1. Rated pressure ：350bar
2. Rated flow ：20-200L/min
3. Operating range: 15-75mm2/s
4. Working temperature ：-40 to 80℃
5. Min viscosity：12mm2/s
6. Max viscosity：400mm2/s
7. Monoblock：1-8 sections
8. Control type: manual, joystick, cable, pneumatic, electro-hydraulic, etc.
Catalogs
No catalogs are available for this product.
See all of Weifang Chengfeiyue Hydraulic Machinery Co., Ltd.‘s catalogsOther Weifang Chengfeiyue Hydraulic Machinery Co., Ltd. products
DIRECTIONAL CONTROL VALVE
