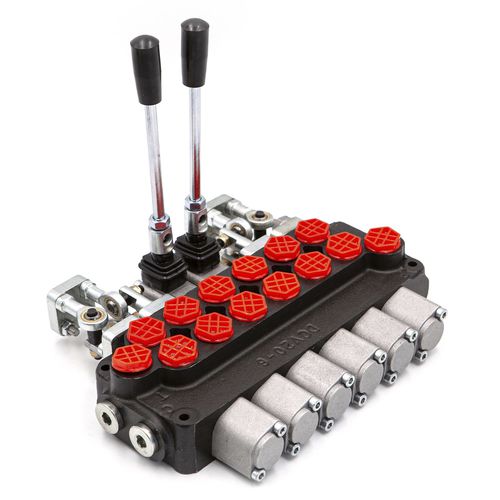

Manual valve DCV20-6pneumaticelectro-hydraulichydraulic
Add to favorites
Compare this product
Characteristics
- Operation
- manual, pneumatic, electro-hydraulic, hydraulic
- Body
- monobloc
- Pressure
Min.: 0 bar
(0 psi)Max.: 350 bar
(5,076.3 psi)- Temperature
Min.: -40 °C
(-40 °F)Max.: 80 °C
(176 °F)- Flow rate
Min.: 20 l/min
(5.28 us gal/min)Max.: 200 l/min
(52.83 us gal/min)
Description
1. Rated pressure ：350bar
2. Rated flow ：20-200L/min
3. Operating range: 15-75mm2/s
4. Working temperature ：-40 to 80℃
5. Min viscosity：12mm2/s
6. Max viscosity：400mm2/s
7. Monoblock：1-8 sections
8. Control type: manual, joystick, cable, pneumatic, electro-hydraulic, etc.
