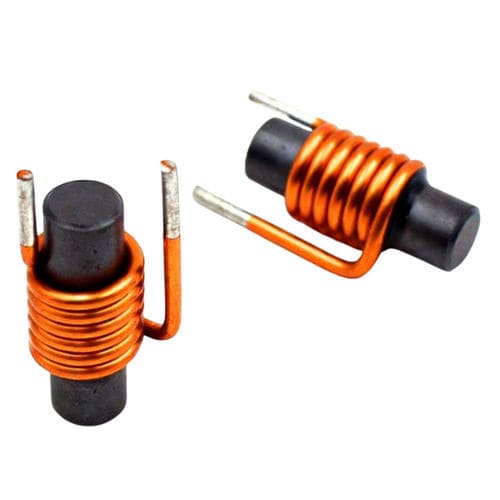

Ferrite inductor WL0625

ferrite corewire-woundhigh-frequency

Overview
The WL0625 ferrite core inductor delivers stable inductance with low core losses in a compact package suitable for modern electronic designs. It supports continuous operation across a wide temperature range and is optimized for high-frequency switching and EMI suppression. Typical uses include switching power supplies, DC–DC converters and noise filters.

Construction and materials
Wound with insulated enameled copper wire on a ferrite magnetic core to increase inductance and minimize eddy current losses. The ferrite material’s low electrical conductivity reduces heat generation at high frequencies and improves electromagnetic interference (EMI) performance.

Shapes and customization

• Available shapes: toroidal, rod-type, drum core and other custom shapes
• Customizable parameters: inductance value, rated current, mechanical dimensions, tolerance, mounting style (radial / SMD)

Applications

• Switching power supplies and DC–DC converters (energy storage during switching)
• EMI filters and noise suppression circuits
• Consumer electronics (TVs, laptops, mobile devices)
• Industrial equipment and motor control systems
• Automotive electronics (engine control, lighting modules)
• Communication equipment (routers, RF modules, network devices)
• Solar inverters and battery chargers requiring efficient power conversion

Product Details
OEM ferrite core inductor designed for integration into power conversion and signal-conditioning systems. The compact construction and flexible design options enable use in automotive, industrial and consumer applications while limiting electromagnetic emissions and allowing economical production.

Product Datasheet
Electrical Specifications
Parameter Symbol Value Unit
Inductance L 1 µH – 1000 µH µH
Tolerance ±L ±10% / ±20%
Rated Current Ir 0.1 – 5 A
DC Resistance DCR 0.01 – 5 Ω
Core Material Ferrite
Operating Temp -40 to +125 °C

Mechanical Specifications
Parameter Value
Core Type Ferrite Core
Construction Radial / SMD
Wire Material Enameled Copper
Insulation Polyester Coating
Mounting PCB

Advantages / Disadvantages

• Advantages: High magnetic permeability allows compact high-inductance designs; low eddy current losses and reduced heat at high frequencies; improved EMI performance; cost-effective for mass production.
• Disadvantages: Ferrite cores are brittle and sensitive to mechanical shock; lower saturation flux density than some metal cores, which can limit high-current performance.

Technical specifications

• Model: WL0625
• Inductance range: 1 µH – 1000 µH
• Tolerance options: ±10%, ±20%
• Rated current range: 0.1 A – 5 A
• DC resistance (DCR): 0.01 Ω – 5 Ω
• Core material: Ferrite
• Construction types: Radial, SMD
• Wire: Enameled copper
• Insulation: Polyester coating
• Mounting: PCB
• Operating temperature: -40 °C to +125 °C
