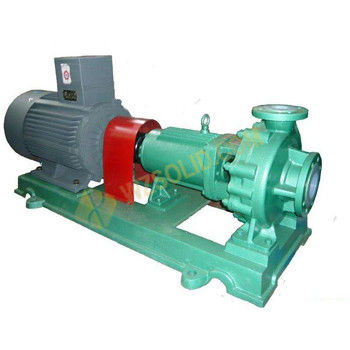

Chemical pump IHF series
electriccentrifugalindustrial

chemical pump
chemical pump
chemical pump
chemical pump
Add to favorites
Compare this product


Characteristics

Fluid
for chemicals
Operation
electric
Technology
centrifugal
Domain
industrial
Protection level
abrasion-resistant
Other characteristics
single-stage, corrosion-resistant
Flow

Max.: 100 m³/h
(3,531.46667 ft³/h)

Min.: 2.5 m³/h
(88.28667 ft³/h)

Head

80 m
(262'05" )

Power

Max.: 45,000 W
(61.18 hp)

Min.: 750 W
(1.02 hp)

Description

Detailed Product Description WENZHOU SOLID MECHANICAL EQUIPMENT CO.,LTD provides good quality fluorine plastic lined centrifugal chemical pump. IHF single stage end suction fluorine plastic lining centrifugal pump is with disposable sintering. The casing is metal lined with FEP, PVDF, PTFE etc. Cover, impeller and shaft sleeve is metal insert with fluorine plastic jacket, inlet & outlet is strengthened with cast steel. All wet parts of pump are made of fluorine plastic. Pump is wearing resistant, corrosion resistant, thermos table, non-aging, strong mechanical strength, running stable, advanced in structure, sealing reliable, easy to maintain and long service life. Working principle: - Centrifugal, end suction Pump shell material: - Cast iron Wet parts and impeller material: - TEFLON, PFA Max. medium temperature: - 100℃ / 120℃(PFA) Drive type: - Electric motor Drive power: - 0.75 - 45KW Flow rate: - 2.5 - 100m3/h Max. Head: - 80m Caliber: - 25 - 100mm Caliber connection: - Flange Seal: - Mechanical seal Motor specification: - 220/240/380/400/415/440v, 3phase, 50/60Hz, etc Main application - Chemical, strong acid/alkali, oxidant, etc Customized service - Anti acid seal, anti alkali seal, special seal
