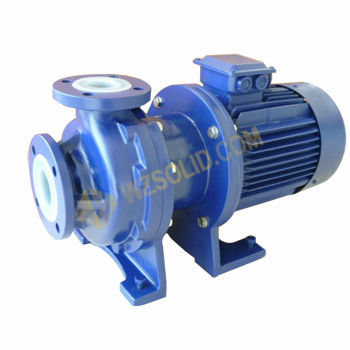

Water pump CQB-F series

for chemicalsoilmagnetic-drive

Detailed Product Description WENZHOU SOLID MECHANICAL EQUIPMENT CO.,LTD provides all CQB-F fluorine plastic lined non-leakage magnetic pump. CQB-F series of magnetic pump’s wet parts are made of FEP, it is with strong corrosion resistance, strong mechanical strength and is without ageing and toxin decomposition. This pump is special designed that it won't leak without mechanical axis and the material of flow passage component is fluorine plastic, ceramic and fluorine rubber. The pump case is fixed by metal material, which ensures the support of pipeline and makes the pump easy to maintain. Widely used in petrochemical industry, acid/alkali plant, non-ferrous metal metallurgy, pickling in automobile manufacture, rare earth separation, pesticide/dye/medicine/papermaking industry, electroplate/radio industry, etc. Working principle: - Magnetic structure, non-leakage, centrifugal Pump body material: - Engineering plastic Max. medium temperature: - 80℃ Flow rate: - 15 - 850L/min Head: - 2 - 50m Caliber: - 8 - 80mm Caliber connection type: - Flange, hose Motor power: - 0.025 - 15KW Motor specification: - 110/115/220/230 single phase, 220/240/380/400/415/440v, 3phase, 50/60Hz, etc Motor type: - Variable frequency, EX motor Main application - Chemical, weak acid/alkali, water, oil, etc
