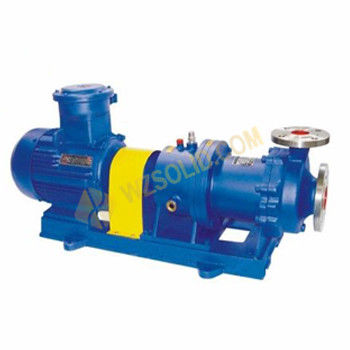

Water pump CQB series
for chemicalsoilmagnetic-drive

water pump
water pump
water pump
water pump
Add to favorites
Compare this product


Characteristics

Media
water, for chemicals, oil
Operation
magnetic-drive
Technology
centrifugal
Domain
industrial
Applications
transport, high-temperature
Material
stainless steel
Other characteristics
flange
Flow

Min.: 3.2 m³/h (113.0069 ft³/h)

Max.: 100 m³/h (3,531.4667 ft³/h)

Pressure

16 bar (232.06 psi)

Head

Min.: 20 m (65'07")

Max.: 100 m (328'01")

Power

Min.: 1.1 kW (1.5 hp)

Max.: 55 kW (74.78 hp)

Description

Detailed Product Description CQB and CQB-G adopt the magnetism transmission principle and cooling installation to transport corrosive medium of high temperature without leakage. CQB apply to pump the liquid that is without solid and fiber, suction pressure is below 0.2MPa(2Bar) & Max. working pressure is 1.6MPa(16Bar), temperature is below 100°C(212°F), density is smaller than 1600kg/m3. And CQB-G is special made to deliver the liquid which is without solid or fiber, Max. working pressure of transport system is below 1.6MPa(16Bar), temperature is less than 280°C(536°F), density is lower than 1840kg/m3. Working principle: - Magnetic structure, non-leakage, centrifugal Pump body material: - Stainless steel 304 or 316 Max. medium temperature: - 100℃(CQB) / 280℃(CQB-G high temperature type) Flow rate: - 3.2 - 100m3/h Head: - 20 - 100m Caliber: - 25 - 100mm Caliber connection type: - Flange Motor power: - 1.1 - 55KW Motor specification: - 220/240/380/400/415/440v, 3phase, 50/60Hz, etc Motor type: - Variable frequency, EX motor Main application: - Chemical, hot oil, acid/alkali, water, oil, etc Customized service: - Insulation jacket, EX motor, variable speed, etc
