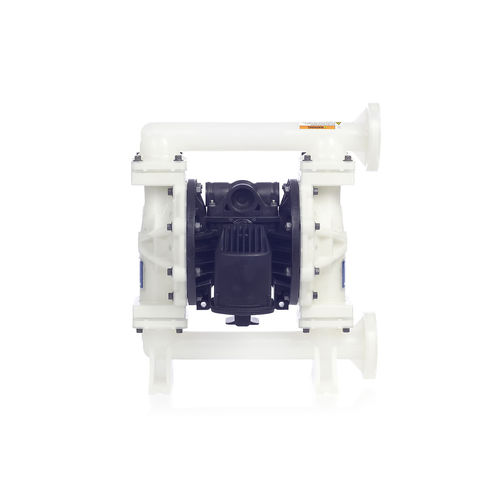

Double-diaphragm pump 777992pneumatic-driveself-primingmobile
Add to favorites
Compare this product
Characteristics
- Operation
- pneumatic-drive
- Priming
- self-priming
- Technology
- double-diaphragm
- Mobility
- mobile
- Domain
- industrial
- Applications
- handling
- Material
- stainless steel, aluminum, polypropylene, PVDF
- Fluid specification
- for abrasive fluids
- Flow
189 l/min
(49.92852 us gal/min)- Pressure
Max.: 8.6 bar
(124.732 psi)Min.: 1.4 bar
(20.305 psi)- Head
8.8 m
(28'10" )- Length
452 mm
(18 in)- Width
258 mm
(10.16 in)- Height
406 mm
(15.98 in)- Weight
8.2 kg
(18.08 lb)
Description
The polypropylene diaphragm pump is built with the highest quality precision parts. Long lasting even when used with abrasive fluids, making this product very cost effective. Professionals turn to this pump because it offers an easy, hands-off solution to your fluid handling needs.
The 1 inch (25.4 mm) Husky 1050 double diaphragm pump features a stall-free, low pulsation air valve which provides a smooth and rapid changeover. Available in aluminum, polypropylene, conductive polypropylene, PVDF, stainless steel and hastelloy fluid sections.
20% increase in fluid flow compared to the Husky 1040
Features
Easy maintenance
Fluid compatibility
Unique, patented air valves
Precision-fitted parts
Benefits
Quick priming and immediate flow of product
Handles fluid viscosities up to 5000 cps and solids up to 0.09 in (2.29 mm)
Excellent for abrasive, low-to-medium viscosity fluids and shear sensitive materials
