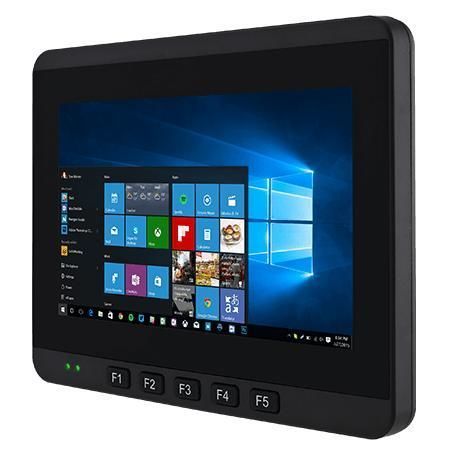

7" vehicle-mount computer FM07E

Intel® Atom x6413EMIL-STD-810GIP 65

Overview
The Winmate FM07E is a 7-inch Windows vehicle-mounted computer powered by the Intel Atom x6413E, engineered for warehouse logistics, fleet management and forklift operations. It provides wide-range DC input with ignition control, M12 waterproof connectors and rugged mechanical and environmental resistance for in-vehicle industrial applications.

Key features

• Intel Atom® x6413E (Elkhart Lake) processor
• 7.0" 1024 x 600 projected capacitive multi-touch display, 1000 nits
• Wide power input 9–36V DC with ignition sense
• M12 waterproof connectors and IP65 front
• Shock & vibration resistance compliant with MIL-STD-810G
• Five programmable front function keys

Certifications

• MIL-STD-810G
• IP65
• CE
• FCC

Product highlights & description
Rugged build: closed, fanless chassis and MIL-STD-810G compliance provide resistance to shock, vibration and dust; IP65 front with M12 connectors ensures reliable in-vehicle operation.

Operator efficiency: five programmable front keys enable fast access to critical functions and simplified workflows for operators in logistics and fleet environments.

Performance and manageability: Intel Elkhart Lake processor delivers adequate processing and graphics performance for edge applications; TPM 2.0 and multiple OS options support security and lifecycle management.

Wide operating range: -20°C to 60°C operation, fanless cooling and robust power management make the device suitable for cold chain, warehouse and outdoor vehicle installations.

Accessories (selected standard & optional)

• Standard: User Guide; M12 LAN cable 1.8 m; RS-232 cable 1.8 m; M12 power cable 1.8 m; USB cable 0.3 m; CANBus & DIDO cable 1.8 m; WLAN antenna; power converter cable; power adapter.
• Optional: WWAN antenna x2; audio cable 0.3 m; GPS antenna 3 m.

Technical specifications

• Model / Brand: FM07E / Winmate
• Display: Projected capacitive multi-touch, 7.0" (1024 x 600), 1000 nits, contrast 800:1, active area 152.2144 x 85.92 mm
• Processor: Intel Atom x6413E (1.5 GHz, up to 3.0 GHz)
• Memory / Storage: 4 GB default (options 8 GB, 16 GB); 1 x M.2 2242 SSD 128 GB default (options 256 GB, 512 GB)
• Connectivity: Gigabit Ethernet (M12), WLAN, Bluetooth, optional WWAN (4G/LTE), GNSS (GPS/GLONASS)
• IO: 2 x USB (for DB9), 1 x Micro USB, 1 x RS232/422/485, 1 x Gigabit LAN (M12), speaker, Micro SIM slot, DIDO (5 DI, 3 DO), 2 x CANBUS
• Environment: Operating humidity 10%–95% RH; temperature -20°C to 60°C; IP65 (front)
• Mechanical: Dimensions 190 x 146 x 40 mm; weight ~1.25 kg; RAM mount supported; VESA 75 x 75 mm rear
• Power: 9–36V DC with ignition control; max consumption 35 W
• Security & OS: TPM 2.0; Windows 10 IoT Enterprise (64-bit) default; optional Windows 11 IoT LTSC or Linux Ubuntu 22.04
