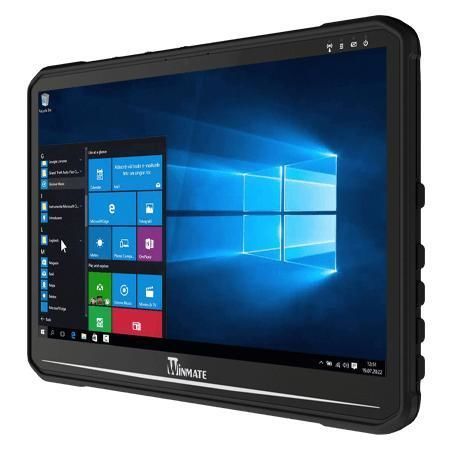

14" vehicle-mount computer FM14E-V

Intel® Atom® x6425EIntel® Elkhart lake SoCMIL-STD-810H

Overview
The FM14E-V is a 14" Windows vehicle-mounted computer (model FM14E-V) designed for warehouse logistics, fleet management and forklift applications. It supports Intel® Elkhart Lake processors (optional x6425E), a 1920×1080 PCAP touchscreen, IP65-rated sealed enclosure, MIL‑STD‑810H shock and vibration resistance, wide 10–60 V DC input with ignition control, fanless cooling and VESA mounting options.

Key Features

• 14" 1920×1080 projected capacitive (PCAP) multi-touch display (optional 700 nits optical bonding)
• Intel® Elkhart Lake processors (default x6413E; x6425E and other options available)
• IP65 dust/water protection and MIL‑STD‑810H shock & vibration
• Wide DC input 10–60 V with ignition control and optional 400 mAh UPS
• Wide operating temperature range −30°C to 60°C; fanless sealed design
• VESA mount support and RAM‑mount compatible mounting options

Certifications

• IP65
• MIL‑STD‑810H (shock & vibration)
• CE, FCC, IC (ICES‑003)
• UL60950‑1, EN60950‑1, PTCRB

Product Highlights / Customer Benefits
The sealed fanless enclosure reduces maintenance in dusty or refrigerated environments and supports frost/condensation resistance for cold‑chain operations. Optional high‑brightness panel and optical bonding improve visibility in sunlight. Ignition control enables automatic power on/off with vehicle engine, protecting hardware and data during fleet operations. Programmable function keys and glove-capable touch improve operator ergonomics.

Mounting solutions (examples)
Mounting 1 – No Drill Solution (sample components)
A | RAM Clamp Mounts - on the forklift | RAM-D-247U-4 | Clamp base with 2.25” Ball | QTY 1
B | RAM Arm | RAM-D-201U | Arm for 2.25” Ball (L: 8.375”) | QTY 1
C | RAM Ball on the device side | RAM-D-2461U | 75 x 75 mm VESA with 2.25” Ball | QTY 1
C-1 | Screw | - | SUS304 M5 x 12mm Screw | QTY 5
C-2 | Washer | - | M5 Washer | QTY 5

Mounting 2 – Drill Solution (sample components)
A1 | RAM round base mounts - on the forklift | RAM-D-202U | 3.68" Round Base with 2.25" Ball | QTY 1
A1-1 | Screw | - | SUS304 M8 x 40mm Screw | QTY 5
B | RAM Arm | RAM-D-201U | Arm for 2.25” Ball (L: 8.375”) | QTY 1
C | RAM Ball on the device side | RAM-D-2461U | 75 x 75 mm VESA with 2.25” Ball | QTY 1
C-1 | Screw | - | SUS304 M5 x 12mm Screw | QTY 5
C-2 | Washer | - | M5 Washer | QTY 5

Notes
Configurations, mounting components and images may vary by ordered model and selected options. Refer to product documentation for exact kit contents.

Technical specifications (highlights)

• Display: 14.0"; 1920×1080; PCAP multi-touch; optional 700 nits; optical bonding available
• System: Intel Atom x6413E default (options x6425E, x7433RE, x7835RE); Memory 4 GB default (8/16 GB optional); Storage 128 GB default (256/512 GB optional); Windows 10/11 IoT Enterprise LTSC; TPM 2.0
• Wireless & Positioning: WLAN, Bluetooth; optional WWAN 4G/LTE; optional GNSS (GPS/GLONASS)
• I/O: 1×USB3.0 Type‑C, 1×USB2.0, 2×RS232/422/485, 1×Gigabit LAN (optional PoE), Audio (Mic/Line), Micro SD, Dual‑Nano SIM, DIDO/CANBus optional
• Environment & Ruggedness: Operating −30°C to 60°C; 5%–90% RH non‑condensing; IP65; MIL‑STD‑810H; EN62262 IK07; ESD per EN61000‑4‑2
• Dimensions & Weight: 342 × 225 × 52 mm; ~2.5 kg
• Power: 10–60 V DC with ignition control; typical ~45 W; optional 400 mAh UPS (~20 min)

Accessories

• Standard: power adapter and cables, 1.8 m DC power cable with fuse kit, power converter cable, quick start guide
• Optional: stylus kit, RS232/audio cables, IP65 LAN cables, GPS/LTE antennas, WWAN/GNSS modules, DIDO/CANBus cables, RAM mount kits
