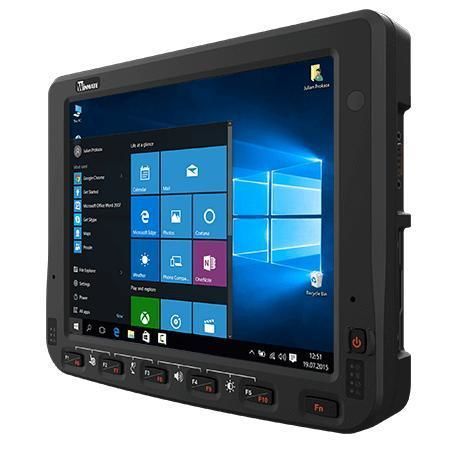

10.4" vehicle-mount computer FM10AD-V

12th Generation Intel® Core™Intel® Core i5-1235U13th Generation Intel® Core™

Overview
Winmate FM10AD-V is a 10.4" vehicle-mount terminal powered by Intel® 12th/13th Gen processors, designed for warehouse logistics, fleet management and forklift operations. It provides IP65 ingress protection, MIL-STD-810H shock and vibration resilience, wide 10–60V DC power input with ignition control, and VESA/RAM mounting support.

Key features

• 10.4" 1024 x 768 PCAP multi-touch display (400 nits standard; 800 nits optional)
• Intel® 12th/13th Gen processor options; TPM 2.0 hardware security
• IP65 rated; MIL-STD-810H certified for shock & vibration
• Wide power input 10–60V DC with ignition control; fanless thermal design
• VESA 75 x 75 mm and RAM mount compatible; programmable function keys
• Optional WWAN (LTE/5G), GNSS (GPS/GLONASS) and CANBus

Certifications

• IP65
• MIL-STD-810H (shock & vibration)
• CE, FCC
• UL60950-1 / EN60950-1
• PTCRB, IC (ICES-003)

Display

• Size: 10.4-inch; Resolution: 1024 x 768
• Type: Projected Capacitive Multi-Touch (PCAP)
• Brightness: 400 nits (default); 800 nits (optional)
• Contrast Ratio: 1200:1; Viewing Angles: 88/88/88/88
• Touch modes: hand, stylus and glove support

System specification

• Processor: Intel® Core™ i5-1235U (default) or i5-1335U (optional)
• Memory: 8GB (default); 16GB / 32GB optional
• Storage: 128GB (default); 256GB / 512GB optional
• OS: Windows 10 IoT Enterprise LTSC (64-bit) default; Windows 11 IoT Enterprise optional
• Wireless: WLAN, Bluetooth; WWAN LTE/5G Sub-6 optional
• GNSS: GPS/GLONASS optional
• Sensors: G-sensor, light sensor, temperature sensor

Camera

• Front camera: 2 MP

Mechanical

• Dimensions: 268 x 214 x 51 mm
• Weight: 2.4 kg
• Mounting: VESA 75 x 75 mm; RAM mount support
• Cooling: fanless design

I/O ports

• USB: 1 x USB 3.0 Type-C; 1 x USB 2.0
• Serial: 2 x RS232/422/485 (default RS232)
• LAN: 1 x Gigabit LAN (PSE IEEE 802.3at 30W optional)
• Audio: Mic-in & Line Out (one or combined with DIDO optional)
• Micro SD slot; Dual-Nano SIM slot; 6 x LED indicators
• DIDO: 1 x DIDO (2xDI; 2xDO) optional; CANBus optional

Environment & robustness

• Operating humidity: 5%–95% RH, non-condensing
• Operating temperature: -30°C to 60°C; Storage temperature: -30°C to 60°C
• Shock: MIL-STD-810H Method 516.8 Procedure I
• Vibration: MIL-STD-810H Method 514.8 Procedure I
• Impact: EN62262 IK07; ESD: EN 61000-4-2 (±8kV direct, ±12kV air)

Control & power

• Buttons: 1 x Power; 6 x programmable function buttons (configurable via Winset)
• Power input: 10 V ~ 60 V DC with ignition control
• Standard power accessories: fuse kit, 1.8 m power cable, power converter cable, 150W adapter

Security & device management

• TPM 2.0 hardware security
• SOTI MobiControl compliance for remote device management

Accessories (standard)

• Fuse Kit (FK-FMD)
• 150W adapter with power cable (EA11301K)
• Power converter cable (PCC-FM)
• Power cable 1.8 m (PWC180-AD)

Accessories (optional)

• Stylus kit; magnetic multi-band antenna (VM10S); GPS & LTE MIMO antenna (VM9C)
• RS232 & audio/DIDO/CANBus cables; WWAN antenna; LAN IP65 cable; cable clamp kit

Mounting solutions

• Example 1 (no-drill): RAM clamp mount + RAM arm + RAM VESA ball (RAM-D-247U-4 / RAM-D-201U / RAM-D-2461U)
• Example 2 (drill): round base + RAM arm + RAM VESA ball (RAM-D-202U / RAM-D-201U / RAM-D-2461U)
• Keyboard/adapter options: Winmate keyboard adapter plate (PN:821009131600) with VESA/AMPS holes

Notes
Available installation parts and accessories depend on the ordered configuration. Images are illustrative and may differ from the delivered product.
