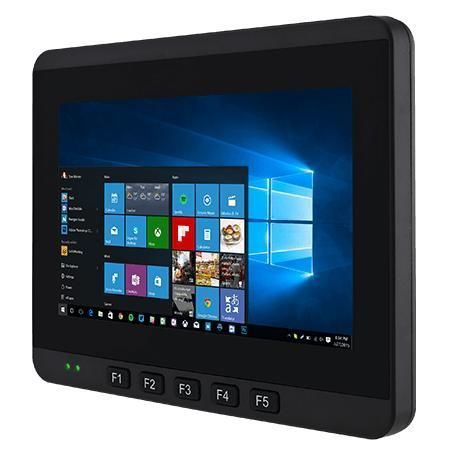

7" vehicle-mount computer FM07P

Intel® Pentium® N4200intel® celeron® N3350MIL-STD-810G

Overview
The FM07P is a 7-inch Windows vehicle-mounted (forklift) computer designed for warehouse logistics, fleet management and in-vehicle data collection. Default CPU is Intel® Celeron® N3350 with optional Intel Pentium N4200. The unit is fanless, supports wide power input and provides MIL-STD-810G shock & vibration resistance with a front IP65 rating for reliable operation in industrial vehicle environments.

Key features

• Intel® Celeron® N3350 (default); Intel Pentium N4200 optional
• 7" 1024 x 600 projected capacitive multi-touch display (1000 nits high-bright option)
• Wide power input 9–36V DC with ignition control
• WWAN (optional), WLAN, Bluetooth and GNSS (GPS/GLONASS)
• Operating temperature range -20°C to 60°C; front IP65; MIL-STD-810G shock & vibration
• Fanless design and rugged magnesium/alloy housing

Product details
Designed for fixed in-vehicle installation, FM07P supports RAM mount (default) and VESA 75 x 75 mm (optional). Front connectors include M12-type Gigabit LAN for secure vehicle connections. Front panel is IP65 rated; dimensions 189.93 x 145.93 x 39.8 mm; weight approx. 1.2 kg.

System & connectivity
Default configuration: 1 x SO-DIMM DDR3L 4GB, 1 x M.2 2242 SSD 128GB, TPM 2.0, Windows 10 IoT Enterprise 64-bit (optional Ubuntu 20.04). I/O: 2 x USB, 2 x COM, 1 x Gigabit Ethernet (M12), 1 x Speaker, 1 x SIM slot, 2 x CANBUS, DIDO (3 DI; 3 DO). Wireless: WLAN, Bluetooth; optional 4G/LTE WWAN; GNSS supports GPS/GLONASS.

Environment & ruggedness
Operating humidity 10%–95% RH. Operating temperature -20°C to 60°C; storage -20°C to 60°C. Shock: MIL-STD-810G Method 516.6 Procedure I. Vibration: MIL-STD-810G Method 514.6 Procedure I. Front IP65 with M12 waterproof connectors.

IO & controls
Standard I/O and controls include 2 x USB, 2 x COM, 1 x Gigabit LAN (M12), speaker, SIM slot, 1 x Power Button, 5 x programmable Function Keys, Power & HD indicators, DIDO (1 x DIDO: 3 DI; 3 DO) and 2 x CANBUS ports.

Accessories

• Standard: power adapter, power converter cables, CANBus & DIDO cable (1.8 m), WLAN antenna, user guide
• Optional: WWAN antennas, GPS antenna

Mounting solutions
Supports RAM mount (default) and VESA 75 x 75 mm (optional). Typical RAM components listed in mounting guides for clamp, round base and keyboard adapter installations (see product documentation for part numbers and installation instructions).

Certifications

• MIL-STD-810G (shock & vibration)
• CE
• FCC

Technical specifications

• Model: FM07P
• Display: 7.0" 1024 x 600 P-CAP multi-touch; panel brightness 1000 nits
• Processor: Intel Celeron N3350 (default); Intel Pentium N4200 (optional)
• Memory: 1 x SO-DIMM DDR3L 4GB default (8GB optional)
• Storage: 1 x M.2 2242 SSD 128GB
• Ethernet: 1 x Gigabit LAN (M12)
• Power input: 9–36V DC with ignition control; max consumption 35W
• Operating temp: -20°C to 60°C; Front IP65; Shock & vibration MIL-STD-810G
• Dimensions: 189.93 x 145.93 x 39.8 mm; Weight ~1.2 kg
