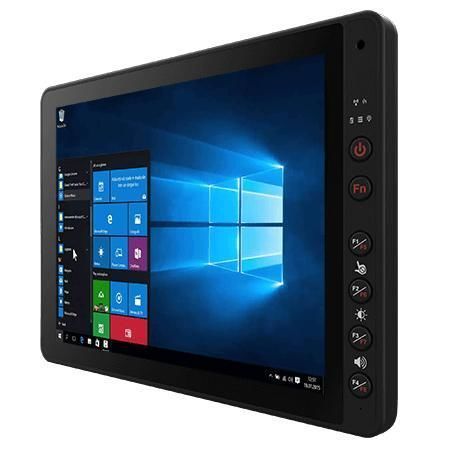

Multitouch screen panel PC FM12AD-V

PCAP capacitive touch screen12.1"1024 x 768

Product overview
Winmate FM12AD-V is a 12.1 inches Windows vehicle and warehouse computer designed for industrial automation, embedded systems and mission-critical logistics. It integrates Intel® 12th/13th Gen processor options, a 12.1 inches 1024 x 768 PCAP multi‑touch display, IP65 front protection, MIL‑STD‑810H shock and vibration compliance, wide 10–60V DC input with ignition control, fanless cooling and multiple mounting options including VESA.

Key features

• Intel® 12th/13th Gen CPU options (up to Intel® Core™ i5-1335U)
• 12.1 inches 1024 x 768 projected capacitive (PCAP) multi‑touch panel
• IP65 front waterproof and dustproof rating
• Wide power input 10–60V DC with ignition control
• Operating temperature range −30°C to 60°C
• Fanless design and VESA / vehicle mounting support

Certifications

• IP65
• MIL‑STD‑810H (shock & vibration)
• CE, FCC, IC (ICES‑003)
• UL60950‑1, EN60950‑1, PTCRB

Display

• Size: 12.1 inches
• Type: Projected Capacitive (PCAP) multi‑touch
• Resolution: 1024 x 768
• Brightness: 400 nits (default), 800 nits (optional)
• Contrast ratio: 1000:1
• Touch modes: hand, stylus, glove

System specification

• Processor: Intel® Core™ i5-1235U (default) · i5-1335U (optional)
• Memory: 8GB (default), optional 16GB / 32GB
• Storage: 128GB (default), optional 256GB / 512GB
• Security: TPM 2.0
• OS: Windows 10 IoT Enterprise LTSC (64 bit) default; Windows 11 IoT Enterprise LTSC optional
• Wireless: WLAN, Bluetooth; WWAN (LTE / 5G Sub‑6) optional; GNSS optional
• Sensors: G‑Sensor, ambient light, temperature

Camera

• Front camera: 2 MP

Mechanical

• Dimensions: 307 x 225 x 57 mm
• Weight: approx. 2.5 kg
• Mounting: VESA 75 x 75 mm; supports RAM mount solutions
• Cooling: fanless design

I/O ports

• USB: 1 x USB 3.0 Type‑C, 1 x USB 2.0
• Serial: 2 x RS232/422/485 (default RS232)
• LAN: 1 x Gigabit LAN (PSE IEEE 802.3at 30W optional)
• Audio: Mic in & Line out (one available, DIDO optional)
• Micro SD slot; Dual‑Nano SIM slot; 4 x LED indicators
• DIDO (2 DI; 2 DO) optional; CANBus optional

Environment & ruggedness

• Operating humidity: 5%–95% RH, non‑condensing
• Operating temperature: −30°C to 60°C; storage: −30°C to 60°C
• Shock: MIL‑STD‑810H Method 516.8 Procedure I
• Vibration: MIL‑STD‑810H Method 514.8 Procedure I
• Impact: EN62262 IK07; ESD: EN 61000‑4‑2 (±8 kV direct, ±12 kV air)

Power & control

• Power input: 10–60V DC with ignition control
• Optional 2400 mAh UPS battery (~1 hour backup)
• Buttons: 1 x power, 5 x programmable function keys

Security & management

• TPM 2.0 support
• SOTI MobiControl compatibility for device management

Accessories & mounting

• Standard: fuse kit, 150W adapter, power converter cable, 1.8 m DC power cable, quick start guide
• Optional: GPS / WWAN / MIMO antennas, RS232 / CANBus / DIDO cables, IP65 LAN cable, stylus kit, waterproof cable clamps
• Mounting examples: RAM clamp (no‑drill), round base (drill), keyboard adapter plate with VESA; check compatibility per model
