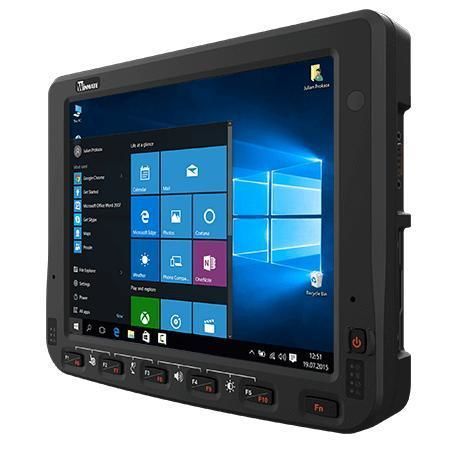

10.4" vehicle-mount computer FM10E-V

Intel® Atom x6413EMIL-STD-810HIP 65

Overview
Winmate FM10E-V is a 10.4-inch vehicle-mounted Windows terminal powered by Intel® Elkhart Lake processors. Designed for warehouse logistics, fleet management and forklift operations, it provides IP65 front protection, MIL-STD-810H shock and vibration resistance, wide 10–60V DC power input with ignition support, PCAP multi-touch and VESA mounting for vehicle installations.

Key Features

• Intel® Elkhart Lake processors (default x6413E; optional variants available)
• 10.4" 1024 x 768 PCAP multi-touch display (400 nits default, 800 nits optional)
• IP65 waterproof/dustproof front and MIL-STD-810H certified ruggedness
• Wide power input 10–60V DC with ignition control; optional UPS battery
• Wide operating temperature: -30°C to 60°C; fanless design
• VESA 75 x 75 mm mount and RAM Mount compatibility

Certifications

• IP65
• MIL-STD-810H (shock & vibration)
• CE, FCC, IC (ICES-003)
• UL60950-1, EN60950-1, PTCRB

Product Details
The FM10E-V is engineered for continuous field operation with a sealed enclosure meeting IP65 and MIL-STD-810H standards for harsh industrial conditions.

PCAP touch screen: 10.4" projected capacitive panel supporting hand, stylus and glove modes and offering good resistance to dirt and debris.

High-performance CPU options: Default Intel Atom x6413E with optional higher-tier Elkhart Lake processors for improved compute, graphics and manageability suited to IoT/edge workloads.

Windows IoT Enterprise: Ships with Windows 10 IoT Enterprise LTSC (64-bit) by default; Windows 11 IoT Enterprise LTSC optional for enterprise device management compatibility.

Security & manageability: TPM 2.0 hardware security and compatibility with centralized management (SOTI MobiControl compliance) for secure fleet operations.

Mounting solutions - Mounting 1: No Drill Solution (excerpts)
No. | Component | RAM Mount Part Number | Description | QTY
A | RAM Clamp Mounts - on the forklift | RAM-D-247U-4 | Clamp base with 2.25” Ball | 1
B | RAM Arm | RAM-D-201U | Arm for 2.25” Ball (L: 8.375”) | 1
C | RAM Ball on the device side | RAM-D-2461U | 75x75mm VESA with 2.25” Ball | 1

Mounting solutions - Mounting 2: Drill Solution (excerpts)
No. | Component | RAM Mount Part Number | Description | QTY
A1 | RAM round base mounts - on the forklift | RAM-D-202U | 3.68" Round Base with 2.25" Ball | 1
B | RAM Arm | RAM-D-201U | Arm for 2.25” Ball (L: 8.375”) | 1
C | RAM Ball on the device side | RAM-D-2461U | 75x75mm VESA with 2.25” Ball | 1

Mounting solutions - Mounting 3: Keyboard Mounting (excerpts)
No. | Component | RAM Mount Part Number | Description | QTY
D | Winmate Keyboard adapter plate (PN:821009131600) | - | 4 VESA holes to device and 4 AMPS holes to RAM Ball | 1
F | RAM Arm | RAM-D-201U | Arm for 1.5" Ball (Length: 5.6") | 1
E | RAM Ball on adapter plate | RAM-D-202U | 2.5" Round Base with 1.5" Ball | 1

Notes
Available installation methods depend on model/configuration. Photos are samples and may differ from the delivered product.

Technical specifications

• Display: 10.4" 1024 x 768, PCAP multi-touch; brightness 400 nits (default), 800 nits (optional)
• CPU: Intel Atom x6413E 1.5GHz (up to 3GHz) default; options x6425E, x7433RE, x7835RE
• Memory: 4GB default; 8GB / 16GB optional. Storage: 128GB default; 256GB / 512GB optional
• Security: TPM 2.0; SOTI MobiControl compliance
• OS: Windows 10 IoT Enterprise LTSC (64-bit) default; Windows 11 IoT Enterprise LTSC optional
• Connectivity: WLAN, Bluetooth; optional WWAN 4G/LTE; optional GNSS (GPS/GLONASS)
• I/O: 1 x USB Type-C; 1 x USB 2.0 Type-A; 2 x RS232/422/485 (default RS232); 1 x Gigabit LAN (PSE IEEE 802.3at 30W optional); Micro SD; Dual-Nano SIM; audio/DIDO options; optional CANBus
• Environment: Operating -30°C to 60°C; humidity 5%–90% RH non-condensing
• Ruggedness: MIL-STD-810H shock & vibration; IP65; EN62262 IK07; ESD per EN 61000-4-2
• Mechanical: 268.1 x 214 x 51 mm; weight 2.4 kg; VESA 75 x 75 mm; fanless
• Power: 10–60V DC with ignition control; optional 400mAh UPS (~20 min); typical consumption 45W
• Accessories: standard and optional power/data/antenna/mounting accessories available
